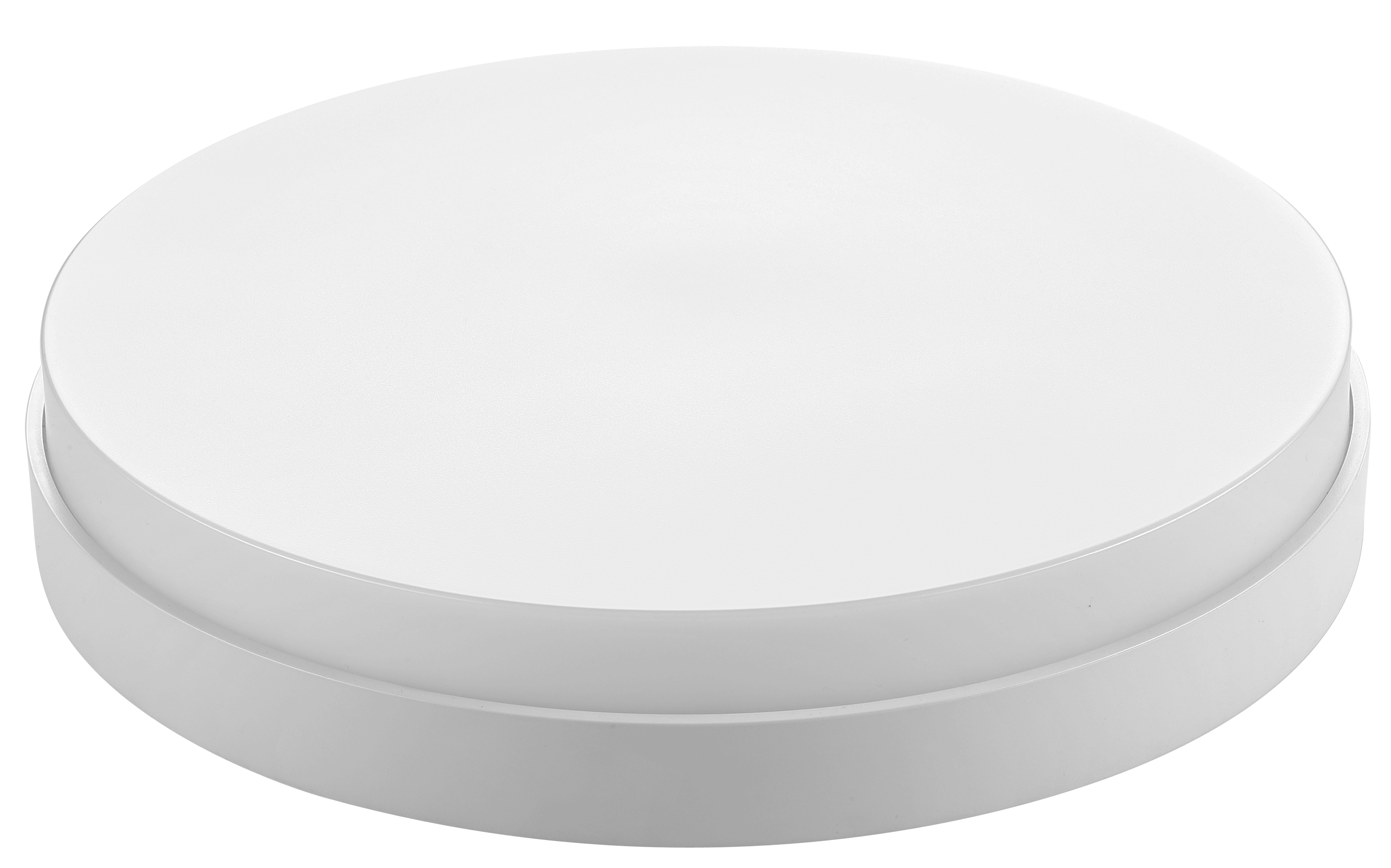

Chamaeleon Deco 2

with Selectable brightness and colour temperature

Overview

The Chamaeleon Deco 2 is an elegant, slim and versatile decorative light, that is easy to customise, with adjustable brightness and dual colour temperature switch.

It has an integrated smart daylight sensor, your lights only turn on only when needed. The Chamaeleon Deco 2 is a smart light that goes into standby mode at dusk and reaches full light when motion is detected. At dawn the luminaire switches off automatically to save energy.

This versatile bulkhead comes with a dual colour switch, making it easy for you to achieve the colour temperature you need, choose from 3000K warm white or 4000K natural white. Having completely separate light circuits ensures colour consistency over the age of the fitting.

Product Downloads

Click the below links to download guides, datasheets and more.

enLighten Chamaeleon Deco 2 Datasheet (417.3KB)
enLighten Chamaeleon Deco 2 Standard Installation Instructions (681.8KB)
enLighten Chamaeleon Deco 2 Emergency Installation Instruction (1576.7KB)

Secure Zone Documents

Highlights

Key Features

Emergency and non-emergency options available
Adjustable brightness - 1500/1000/700 lumens options within same fitting
Dual colour switch - with the flick of a switch choose either 3000K warm white or 4000K natural white colour tone
2 & 3 Step sensor dimming - offers full, standby & off modes
Smart daylight sensor - your lights only turn on when needed
Flicker free

Applications

Technical Info

PRODUCT RANGE
D2-CHAM	Chamaeleon Deco 2 Standard with in-built microwave and daylight sensors
D2-CHAM-E	Chamaeleon Deco 2 Emergency with in-built microwave and daylight sensors
D2-CHAM-P	Chamaeleon Deco 2 Standard

OPTICAL
Light source	Samsung LEDs
Lumen output	1500 (max), 1000, 700 lumen
CRI	Ra>80
CCT	3000K or 4000K (selectable colour)

ELECTRICAL
Power consumption	16W Standard, 17W Emergency
Standby light level	25%, 10% & Off
Standby power	0.5W-5.5W
Operating frequency	50/60Hz
Operating voltage range	220 -240 V AC

EMERGENCY LIGHT
Battery type	LiFePO4 (2 year warranty)
Discharge time	90 minutes
Emergency classification	D40

ENVIRONMENTALLY
IP rating	IP44
Impact rating	IK10
Weight	1.3kg standard, 1.5kg emergency
Temperature range (standard)	-10°C to +40°C
Temperature range (emergency)	0°C to +40°C
Material Composition (body)	Polycarbonate (UV stabilised)
Material Composition (diffuser)	Polycarbonate (UV stabilised)
Expected LED Lifespan	> 60,000 hours @ L70

CONTROLS
Selectable brightness	Allows for adjustable brightness, select 1500lm, 1000lm or 700lm
Selectable colour temperature	3000K or 4000K
Smart daylight sensor	Standby at dusk, full light when motion is detected and switches off automatically with morning light
Smart daylight sensor	Standby at dusk, full light when motion is detected and switches off automatically with morning light
Integrated motion sensor	2 & 3-step dimming to standby level or off

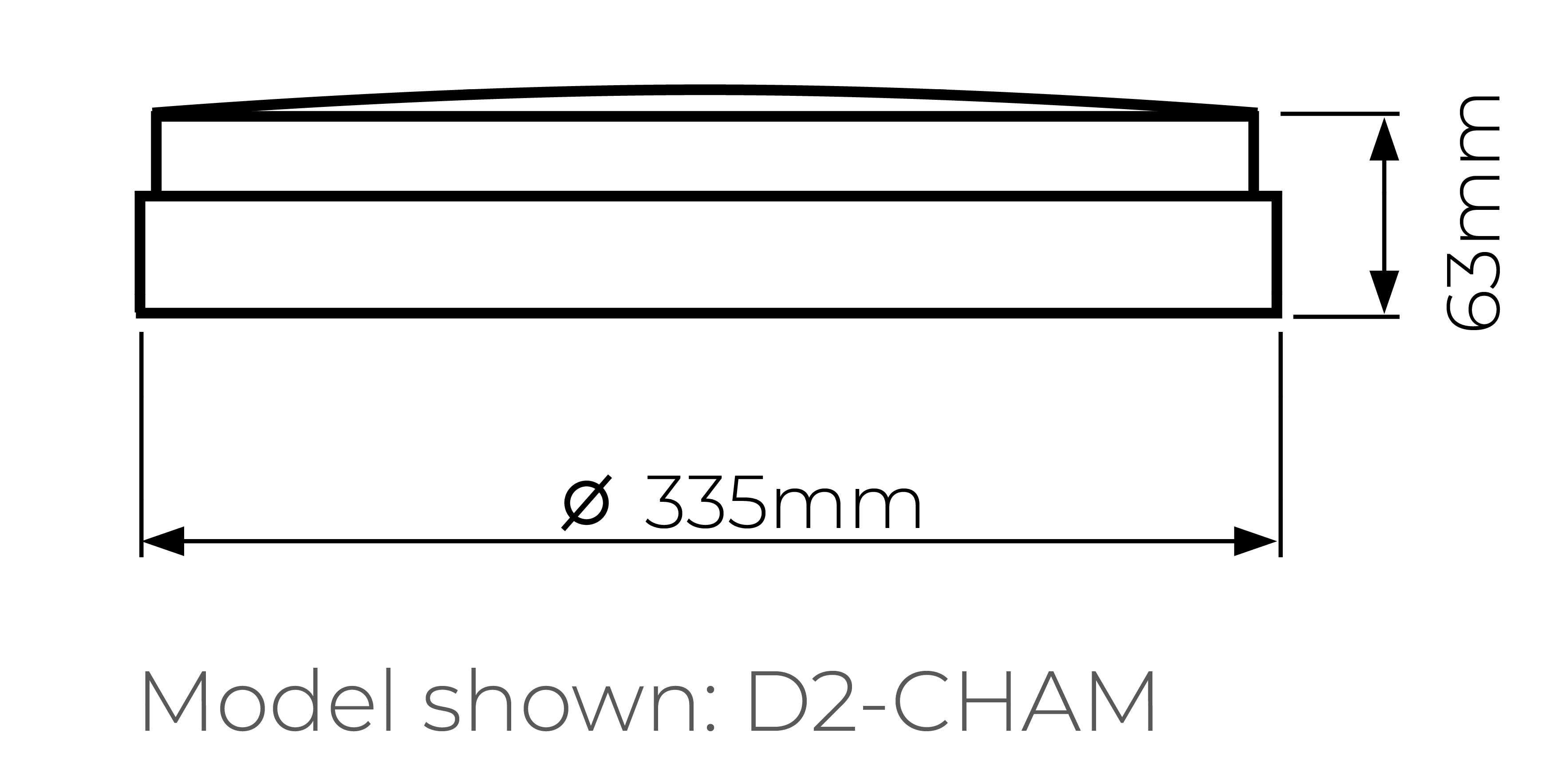

Dimensions

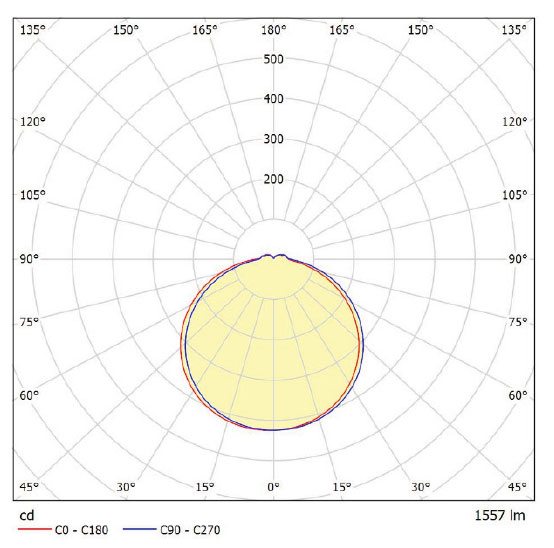

Photometrics

Product Review

Peter Voigt, Voigties Volts Project Solutions

14 Quarymaster Drive, Pyrmont
‘This elegant slimline oyster is built to last and was easy to install. I like how the dual colour switch uses completely separate light circuits, giving long lasting colour consistency for both 3000K and 4000K. Also having the selectable brightness to 50%, 75% or 100%. Is a great if your chasing power savings or you need to brighten an area.

The controls on this light make it easier for buildings without smart control wiring to make the most out of the existing wiring. Hands down the most versatile light I have installed.’
