Chamaeleon Eco

Up to 93% energy savings

A value offering for low occupancy spaces

Overview

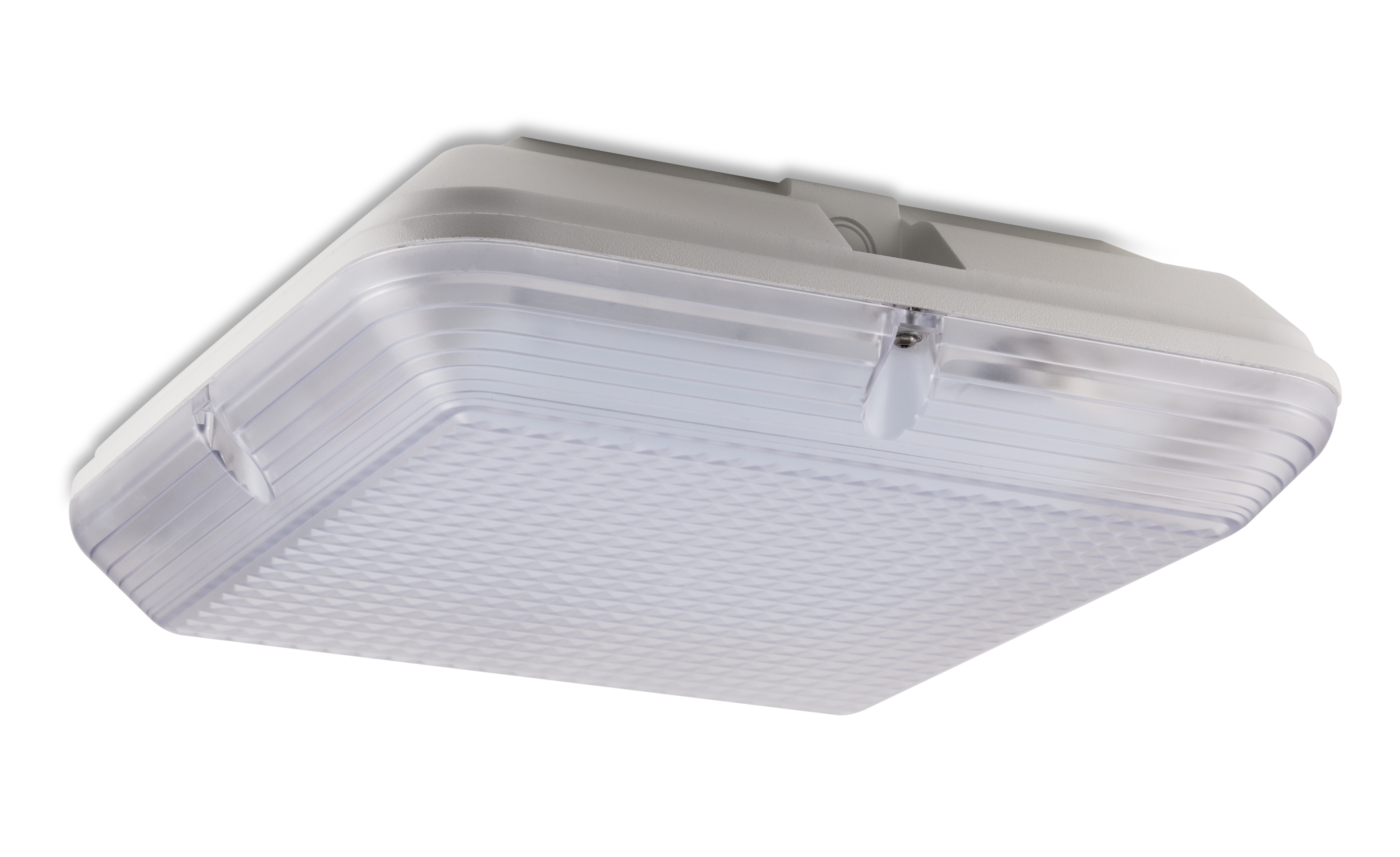

The Chamaeleon Eco, designed by enLighten Australia, it complements the Chamaeleon range to offer a complete back of house lighting solution for residential strata common areas, commercial and industrial applications.

It is an excellent choice for fire stairs, car parks and corridors, with both emergency and non emergency options available. Easy to install using a screw less gear tray with pre-drilled holes and a large terminal block.

Product Downloads

Click the below links to download guides, datasheets and more.

enLighten Chameleon Eco Datasheet (463.0KB)
enLighten Chamaeleon Eco EN SL S Installation Instructions (1495.4KB)
enLighten Chamaeleon Eco EN SL E Installation Instructions (1712.1KB)
enLighten Chamaeleon Eco Remote Commissioning Tool User Manual (497.8KB)

Secure Zone Documents

Highlights

Key Features

Integrated microwave motion sensor triggers automatic switching between full and standby light output in standard and emergency models
Daylight harvesting
Commissioning tool - Easily adjustable with infrared, universal remote
Smart Connect base for easy install, removal & maintenance. Maintenance can be performed by a handyman without isolating power
High performance LUMILEDS LEDs
Expected life > 54,000hrs
Adjustable full and standby lighting levels
Indoor or outdoor use supported by water and dust proof rating of IP65
IK10 - Highest level of impact resistance
IP65 - Ingress protection
Emergency and non emergency options available
Australian design
VEU approved
IPART approved

Applications

Technical Info

TECHNICAL INFORMATION

PRODUCT RANGE
EN-SL-S	Ceiling mount standard
EN-SL-E	Ceiling mount emergency

OPTICAL
Light source	Lumileds LED
Lumen output	2500 lumen
CRI	Ra>80
CCT	4000K

ELECTRICAL
Power consumption	22W full light output (standard), 25W (emergency) 3W standby light output (Standard) and 6W (emergency)
Operating frequency	50/60 Hz
Operating voltage range	100 -240 V AC
Power factor	>0.9 240 V AC at full load

EMERGENCY LIGHT
Battery type	7.2V NiCD 1800mAh
Discharge time	90 minutes
Emergency classification	D50

ENVIRONMENTALLY
IP rating	IP65
Impact rating	IK10
Weight	2.5kg standard, 3kg emergency

Controls

Microwave motion sensor & PE
daylight sensor standard.

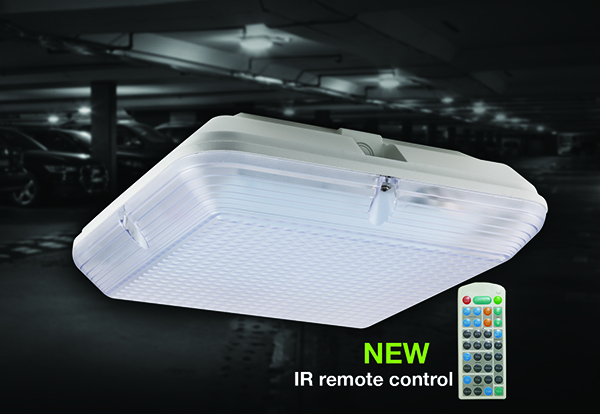

Optional IR remote control

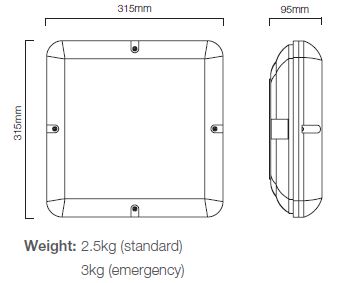

Dimensions

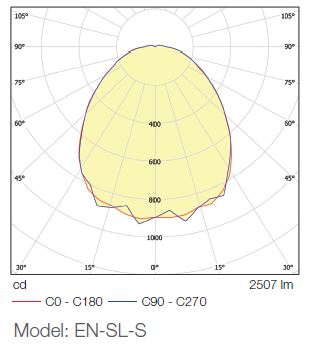

Photometrics

Product Review

Allan Hoy, Building Manager

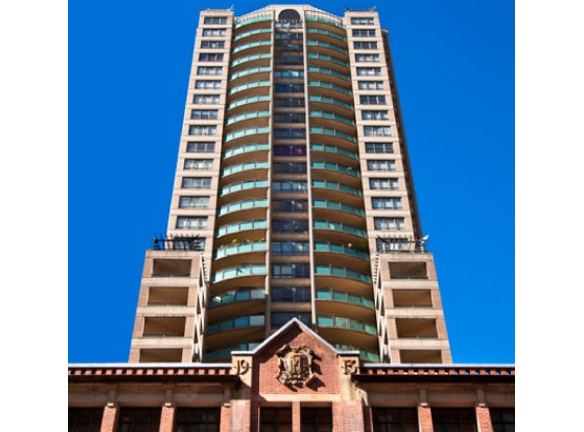

Hyde Park Towers

'8 years on at Hyde Park Towers and only 6 drivers have needed replacing. When we reached out to enLighten this year, they didn't hesitate to replace the drivers and renew the life of our Chamaeleon Eco's. I am delighted at the quality and longevity of this product.

Thank you enLighten for supporting your product even after 8 years and all your efforts in making a real environmental impact.'
