Kascade

High-performance, high CRI LED highbay

Product enquiry

Overview

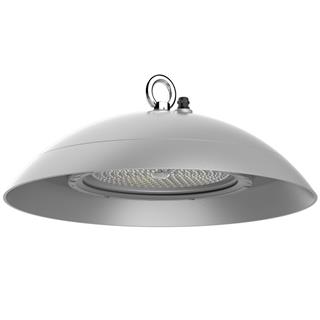

Kascade is a high-performance, high CRI LED high bay ideal for use in food production and other industrial areas.

The Kascade LED high bay has a high light output and offers a high colour rendering whilst achieving low power consumption.

Designed with no glass, it is completely sealed from the environment and offers glare shielding. Its smooth yet robust surfaces have no exposed screws, it is hygienically sealed. It can withstand powerful jets of water for hassle-free cleaning.


The Kascade comes with 1-10V DC dimming as standard and can be can be fitted with a DALI compliant driver (optional)

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
suspension mount 1 pendant 1 IP66 1 1K10 1 5 Year Warranty 1 Core Range (1)

Optional Features

Dali
Highlights

Key Features

  • Very high colour rendering CRI>90
  • Narrow, medium & wide beam optics available
  • Ease of installation, single point hook mounting with 3m flex and plug
  • Available in 100W, 120W, 150W & 200W
  • IP66, high ingress protection for dust and withstands significant water pressure
  • IK10 Highest level of impact resistance
  • 1-10V dimmable (standard), DALI dimmable (optional)
  • Ambient operating temperature range of -30°C to +50°C
  • Zero maintenance, reliable Meanwell driver
  • VEU approved
  • IPART approved





Applications

Food Manafacturing Halls Indoor sports centres Large retail Warehousing Wholesale outlets
Technical Info
  MODEL   DESCRIPTION
  LUMEN
  OUTPUT (Lm)
  Rated Power (W)
  KHB100-50K-xx-90
  100W 5000K CRI>90
  Kascade LED Highbay
  11,260    100
  KHB120-50K-xx-90     120W 5000K CRI>90
  Kascade LED Highbay
  12,940    120
  KHB150-50K-xx-90    150W 5000K CRI>90
  Kascade LED Highbay
  16,910    150
  KHB200-50K-xx-90    200W 5000K CRI>90
  Kascade LED Highbay
  21,570    200
  OPTICAL
  Light source   Nichia LEDs
  Lumen output    11,200 - 21,640lm
  CRI    Ra>90 standard;
  Ra>80 optional
  CCT   5000K standard;
  3000K & 4000K optional
  Luminaire efficacy     >107 lm/W

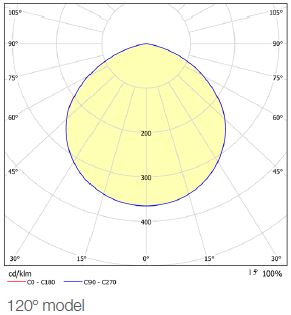

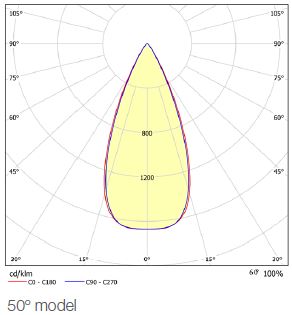

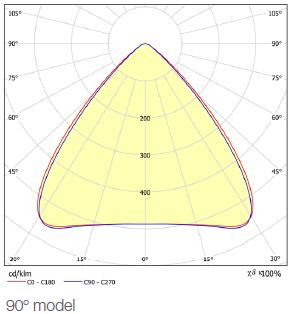

  Beam angle    120°, 90°, 50°
  ELECTRICAL
  Operating voltage range    220 - 240V AC, 50Hz
  Power factor    >0.90 / 240V AC
  Driver    Meanwell
  ENVIRONMENT
  IP rating   IP66
  Impact rating    IK10
  Net Weight    7.2 ±  0.3kg
  Ambient temp range    -30°C to 50°C
  Material composition (body)      Aluminium Alloy
  Material composition (diffuser)    Polycarbonate lens
  Expected lifespan    >170,000 hrs @ 70,
  >100,000 hrs @ L80,
  >45,000 hrs @ L90
  CONTROLS
  Dimming 1-10V (standard), DALI (optional)

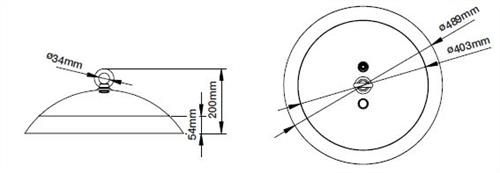

Dimensions

THE DIMENSIONS ARE FOR 100W, 120W, 150W & 200W
Kascade dimensions

Product Review

Ian Brunning, Globebuster

Haigh's Chocolates
"We chose the Kascade HACCP approved food grade luminaire to place above the packing benches,as they are a high-performance CRI luminaire which is ideal for food production areas. Haigh’s Chocolates cares about the lighting comfort for all their employees,"

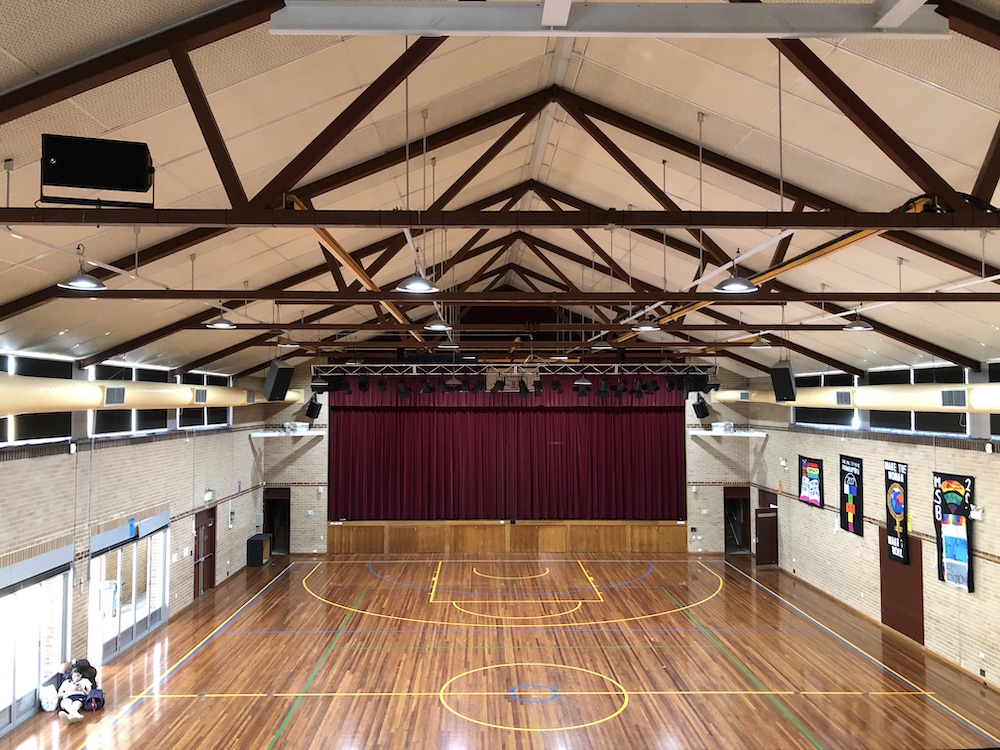

Download your multi-purpose school hall lighting guide
