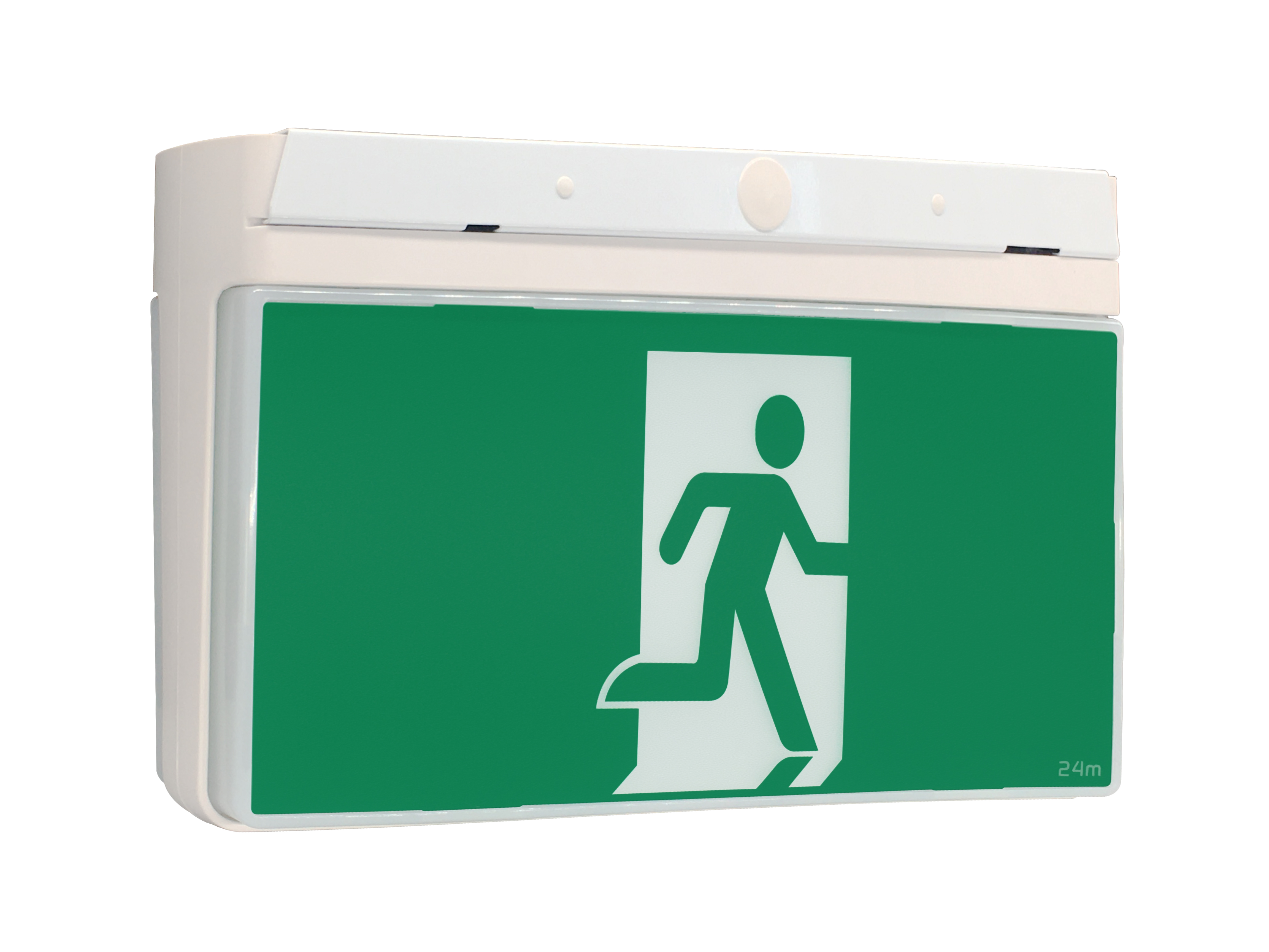

Mirador Exit
Maintained LED Exit Sign with Slide’n’Connect quick fit bracket
Overview
The Mirador Exit Sign is a highly reliable, longlife and cost effective product that complies with AS/NZS 2293.

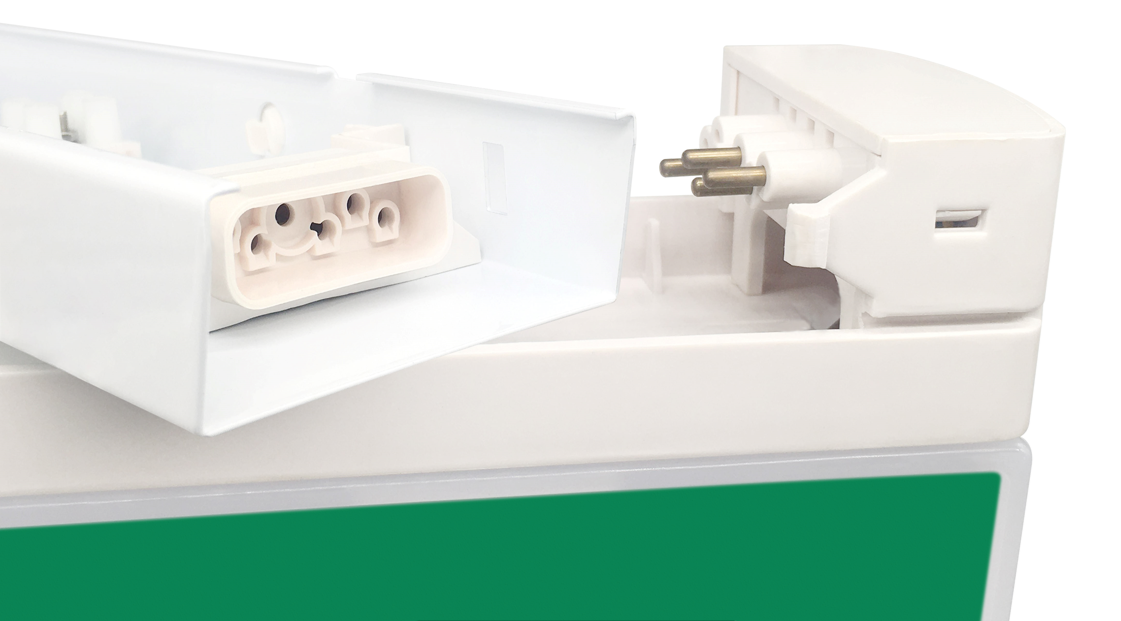

The Slide’n’Connect quick fit bracket allows for fast ceiling or wall mount installation, simple wiring and ease of maintenance.
This one box solution has a range of decals for every location. Our Exit Sign uses environmentally friendly LiFePO4 battery.
This product performs the dual role as a Maintained Exit Sign with max 24m viewing
distance & a Maintained Emergency Light with D3.2 emergency classification. It is well suited for use in commercial, educational, retail, strata & health care buildings.
Product Downloads
Click the below links to download guides, datasheets and more.
- enLighten Mirador EXIT-SC Datasheet (852.5KB)
- enLighten Mirador EXIT-SC Installation Guide (558.7KB)
- enLighten Mirador Self-Test Function (174.6KB)
Secure Zone Documents
Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.
Login
Key Features
- Slide’n’Connect quick fit bracket for easy installation
- Single or Double Diffuser with a selection of directional decals included
- Max. viewing distance: 24m
- Emergency Classification: D3.2
- Expected LED life > 110,000hrs @L70
- Emergency duration >180 minutes
- IP20 - Ingress protection
- Commissioning Self-Test: Automatic commissioning test 16 hours after install
- Duration Self-Test: Automatic duration testing every 3 months
- Long life LiFePO4 battery
- 5 year warranty (2 years for battery)
Applications

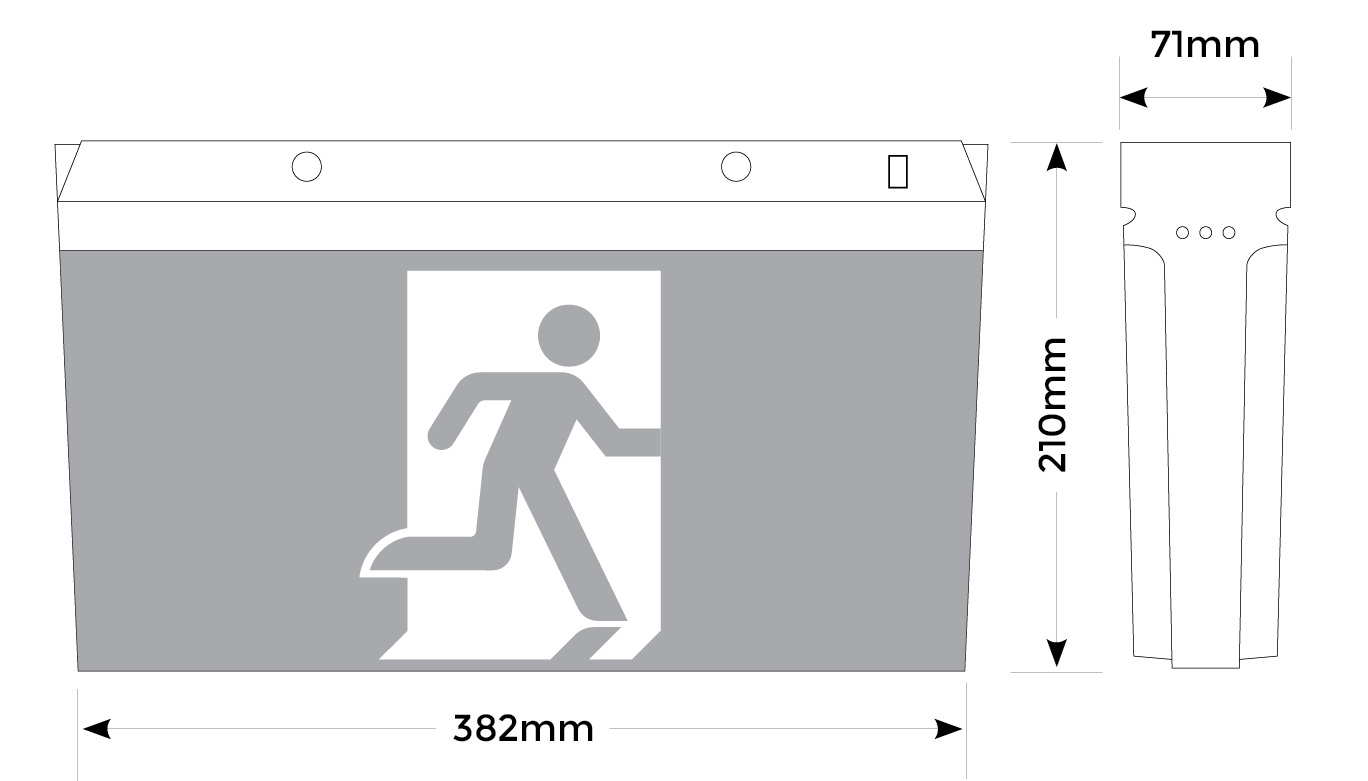

| MODEL | DIMENSIONS (mm) | RATED POWER (W) | WEIGHT (kg) |
| MIRA-EXIT-SC | 382 x 71 x 210 | 2 | 1.5 |
| OPTICAL | |
| Light source | Osram LEDs |
| Mode of operation | Maintained |
| Emergency Duration | >180 minutes |
| ELECTRICAL | |
| Power consumption (W) | 4.5W Charging Mode | 2W Standby Mode |
| Operating voltage & frequency | 220 - 240V AC, 50 Hz |
| Charger | BMS controlled constant voltage charging |
| Battery type | LiFePO4 |
| Battery rating |
4.8Wh, 3.2V 15000mAh, LiFePO4 |
| Protection | Overcharge, low voltage disconnect, overcurrent, short circuit |
| ENVIRONMENTAL | |
| IP rating | IP20 |
| Weight | 1.5kg |
| Ambient temp. range | 0°C to +40°C |
| Material Composition (body) | Flame retardant ABS body, powder coated metal bracket, PS diffuser |

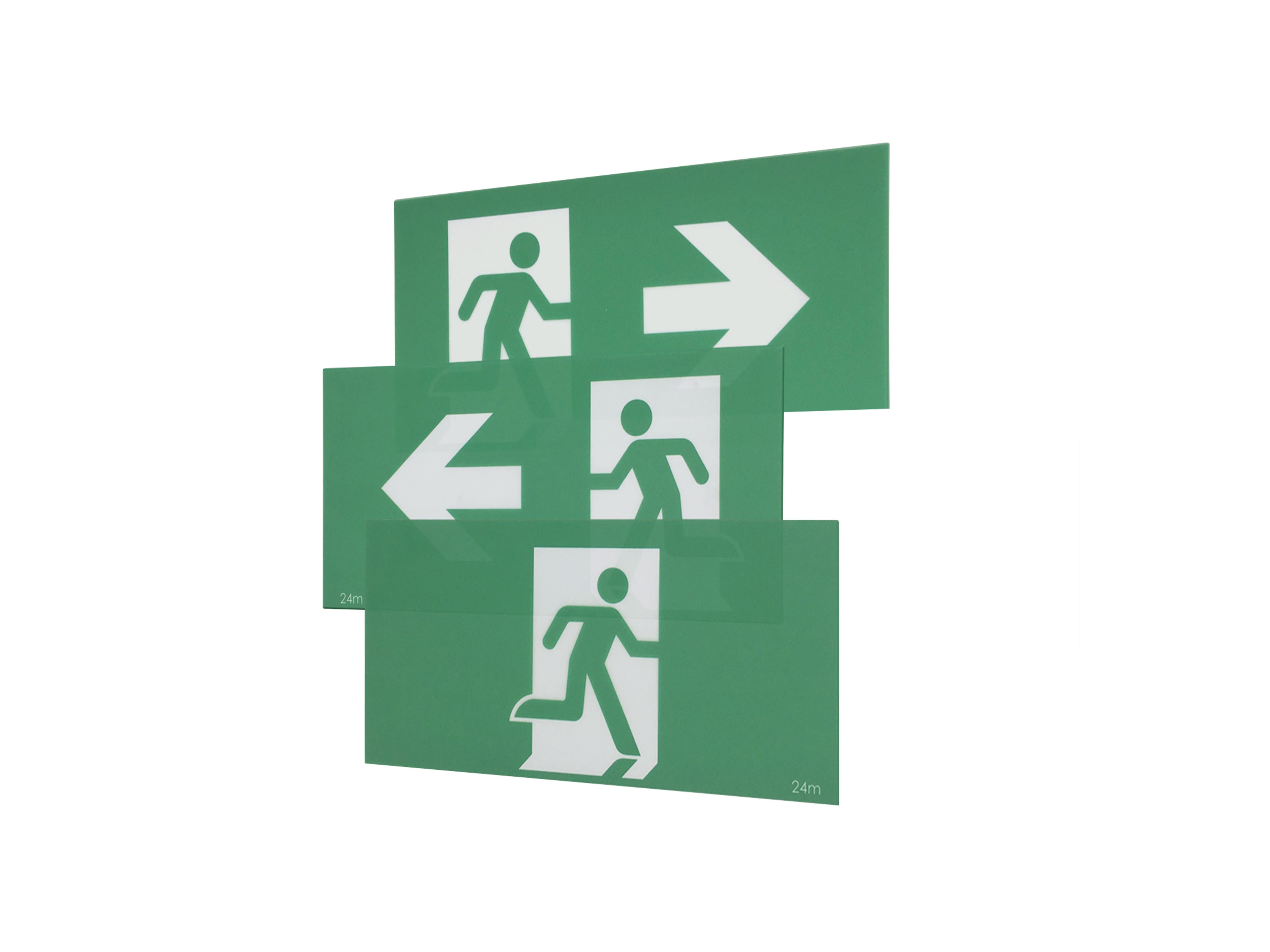

| Decals |
Arrow Left, Arrow Right, Running Man |
| CONTROLS | |

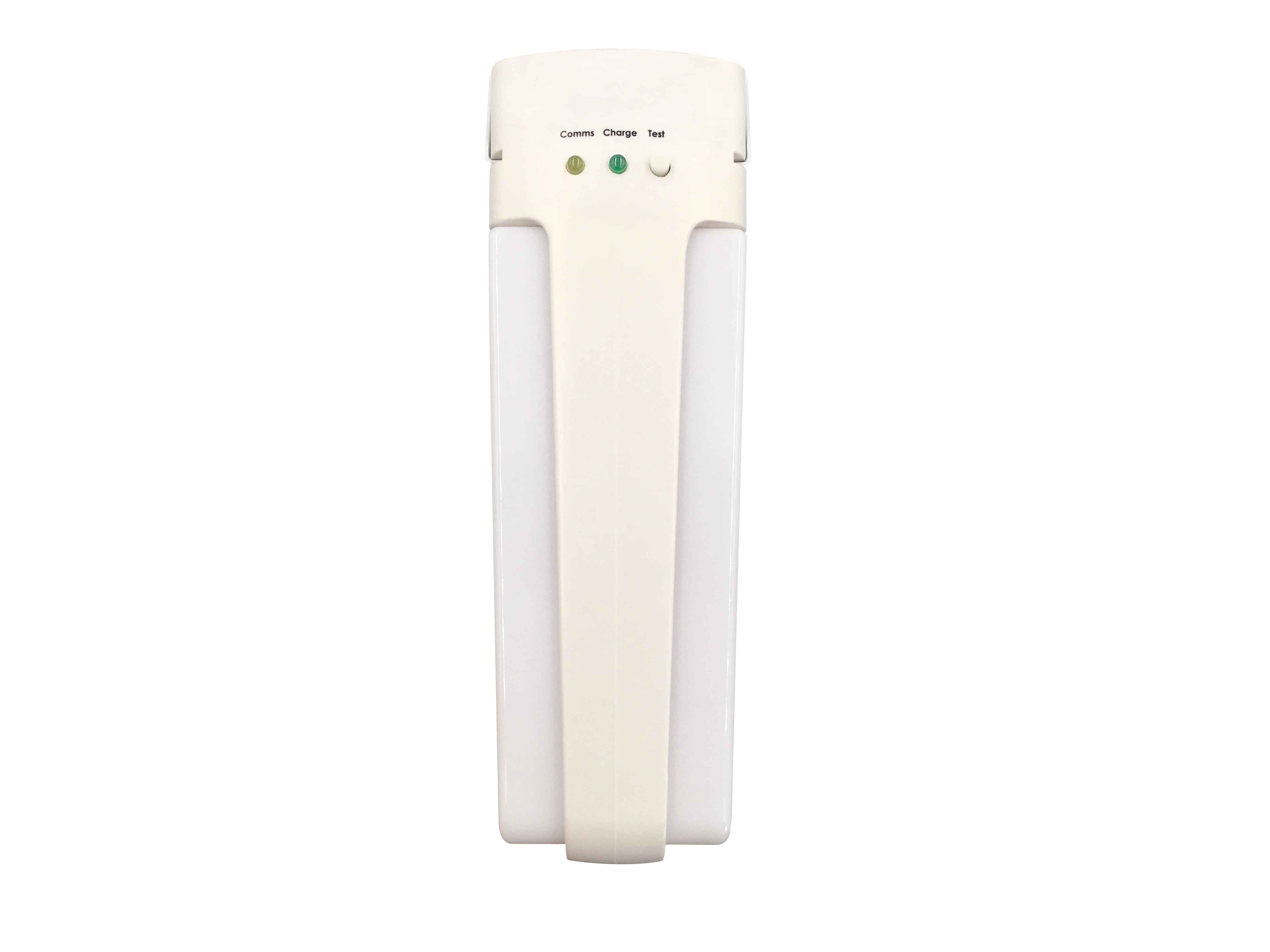

| Testing facility | Manual test switch |
| Indicators | Battery charger green LED |
| COMPLIANCE | |
| AS/NZS 2293 | D3.2; 24m max. viewing distance |
