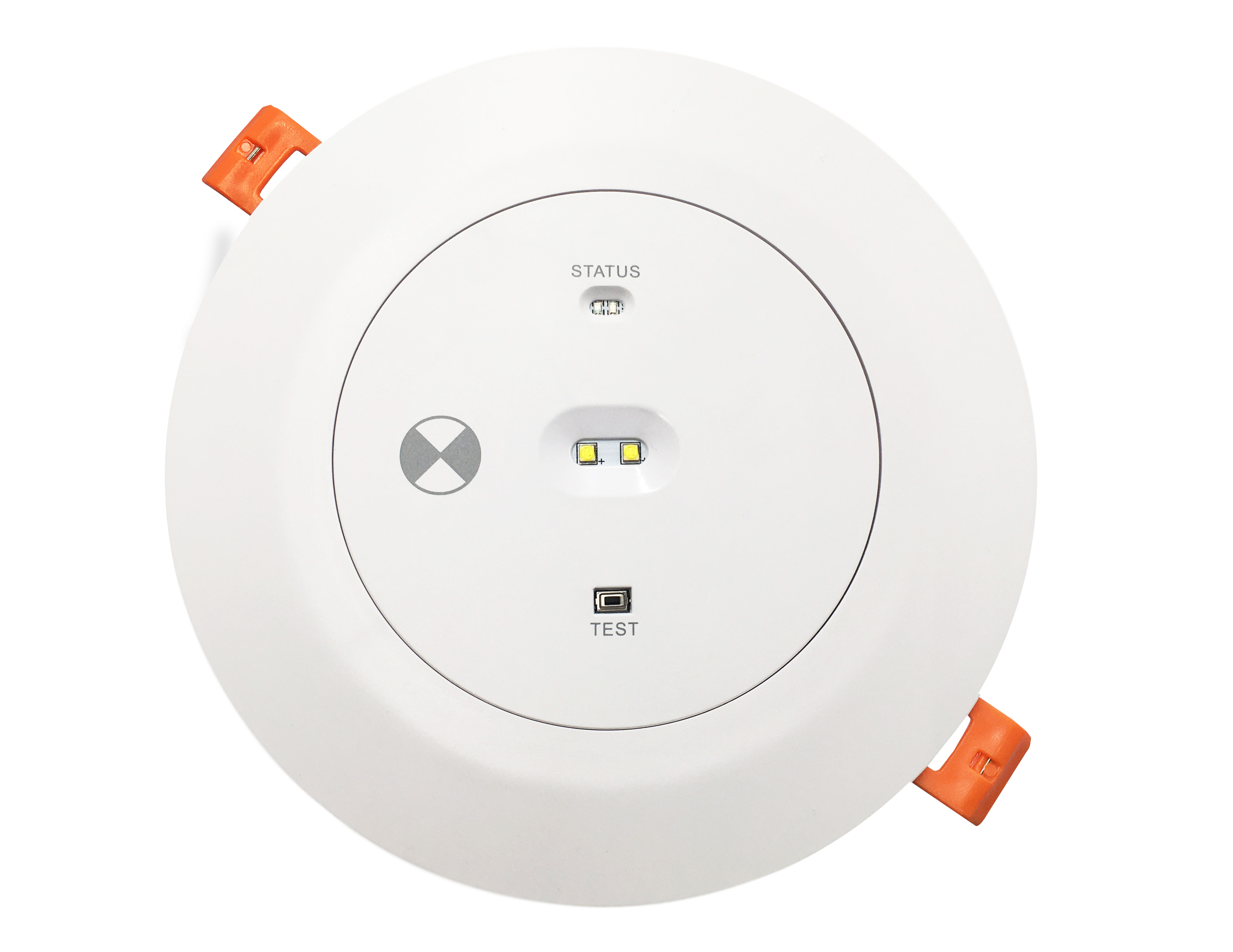

Mirador Recessed

Non-maintained LED Emergency Light

Overview

The Mirador Recessed is an ultra-bright wide angle recessed mounted emergency light that provides emergency illumination to allow the occupants of the building to safely exit in the event of mains power failure.

It is a non-maintained emergency light that achieves a high emergency classification of D80 as per AS/NZS 2293. It uses an environmentally friendly LiFePO4 battery with a long lifespan and a fast-charge rate.

It is well suited for use in offices, commercial, retail, education, strata, residential & health care buildings.

Product Downloads

Click the below links to download guides, datasheets and more.

enLighten Mirador Recessed EL-D80 Datasheet (1581.2KB)
enLighten Mirador Recessed EL-D80 Installation Guide (490.4KB)
enLighten Mirador Self-Test Function (174.6KB)

Secure Zone Documents

Highlights

Key Features

Operating Mode - Non-Maintained
Double disc design to cover 70-150mm cutout
Emergency Classification D80
Compliant to AS/NZS 2293
IP20 - Ingress protection
Commissioning Self-Test: Automatic commissioning test 16 hours after install
Duration Self-Test: Automatic duration testing every 3 months
Long life LiFePO4 battery
5 year warranty (2 years for battery)

Applications

Technical Info

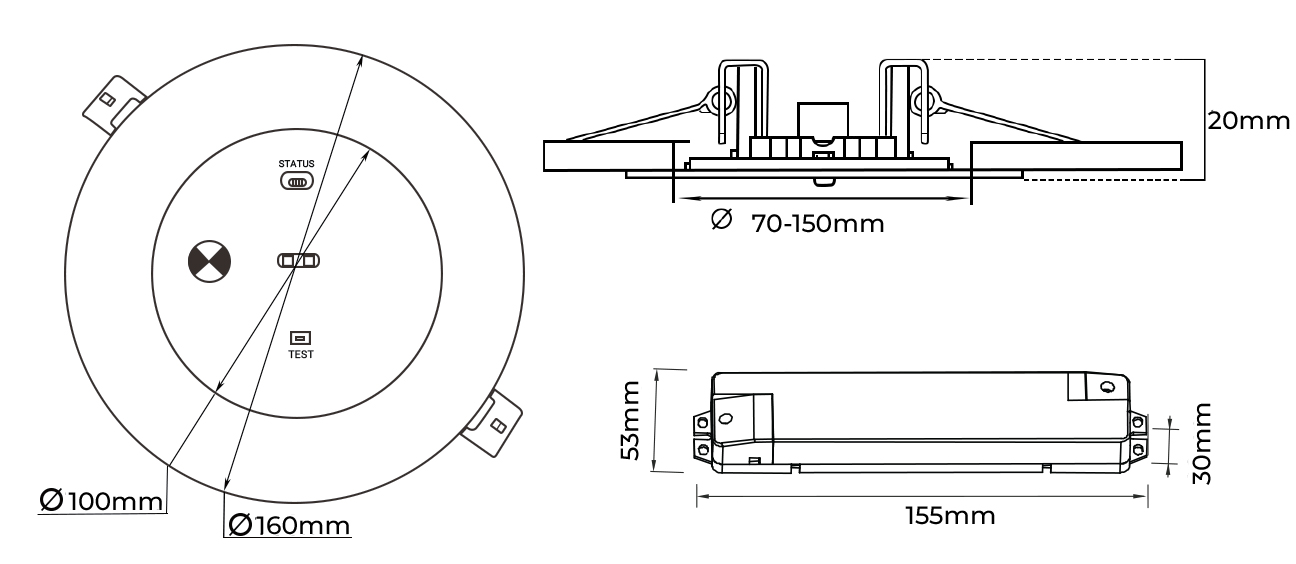

MODEL	DIMENSIONS (mm)	RATED POWER (W)	WEIGHT (kg)
MIRA EL - D80	230 x 160 x 65	4	0.6

OPTICAL
Light source	Osram LEDs
Mode of operation	Non-Maintained
Emergency Duration	>180 minutes

ELECTRICAL
Power consumption (W)	7W Charging Mode 4W Standby Mode
Operating voltage & frequency	220-240VAC, 50Hz
Charger	BMS controlled constant voltage charging
Battery type	LiFePO4
Battery rating	3.2Ah, 3.2V, 10.24Wh
Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
Fitting Type	Class II Electrical

ENVIRONMENTAL
IP rating	IP20
Weight	0.6kg
Ambient temp. range	1°C to +40°C
Material Composition (body)	Flame retardant ABS
Relative Humidity	0 to 90%
