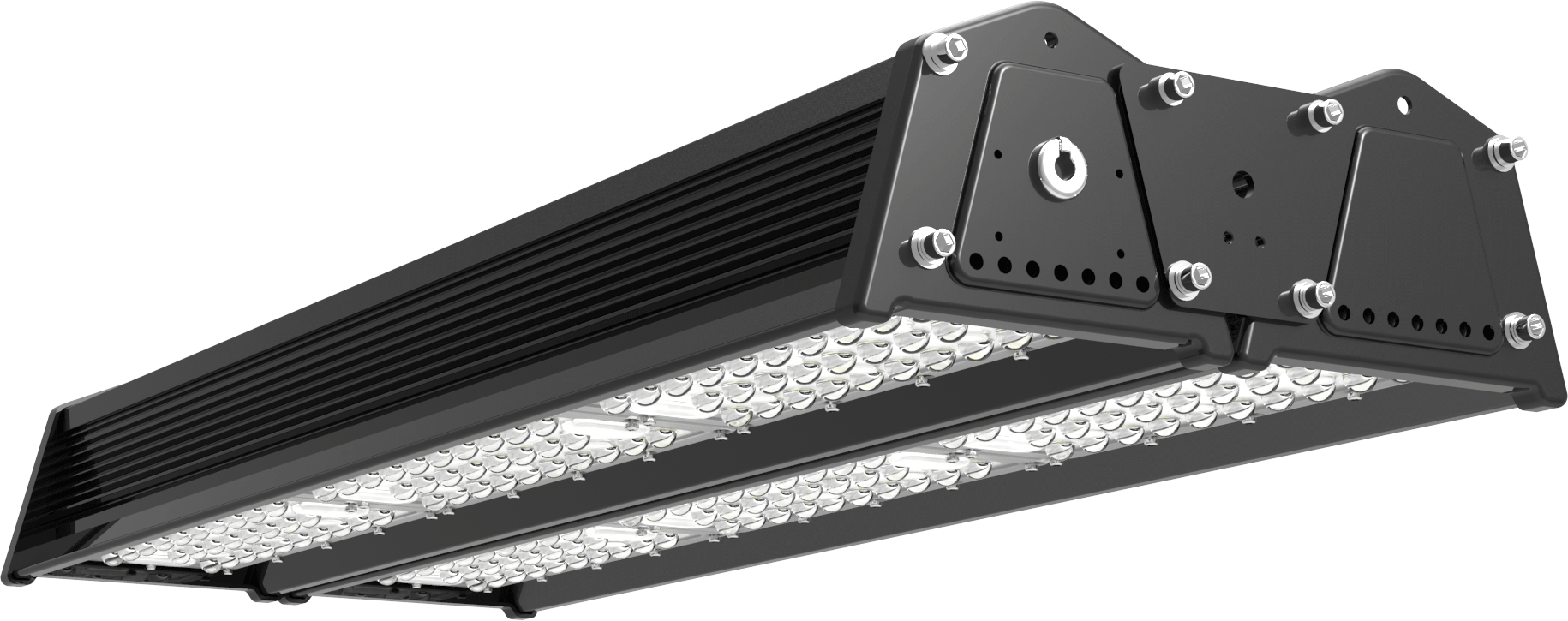

Tauro Black

High efficacy high bay 165 lm/w

With customised aisle racking optics

Product enquiry

Overview

UP TO 40% MORE EFFICIENT THAN STANDARD LED HIGH BAYS

The Tauro Black high bay is the next evolution in LED high bays, with results of up to 40% more efficiency when compared to other LED high bays. Minimise your energy consumption and maximise your energy savings by eliminating waste light and hot spots, through the use of custom optics and industry leading efficacy of up to 165 lm/w.

Customised aisle racking optics are transforming the warehouse environment. Vertical illumination improves pick accuracy and productivity by making it easier to read labels and retrieve stock. Achieve uniform horizontal lighting throughout the facility and create a safer workplace.

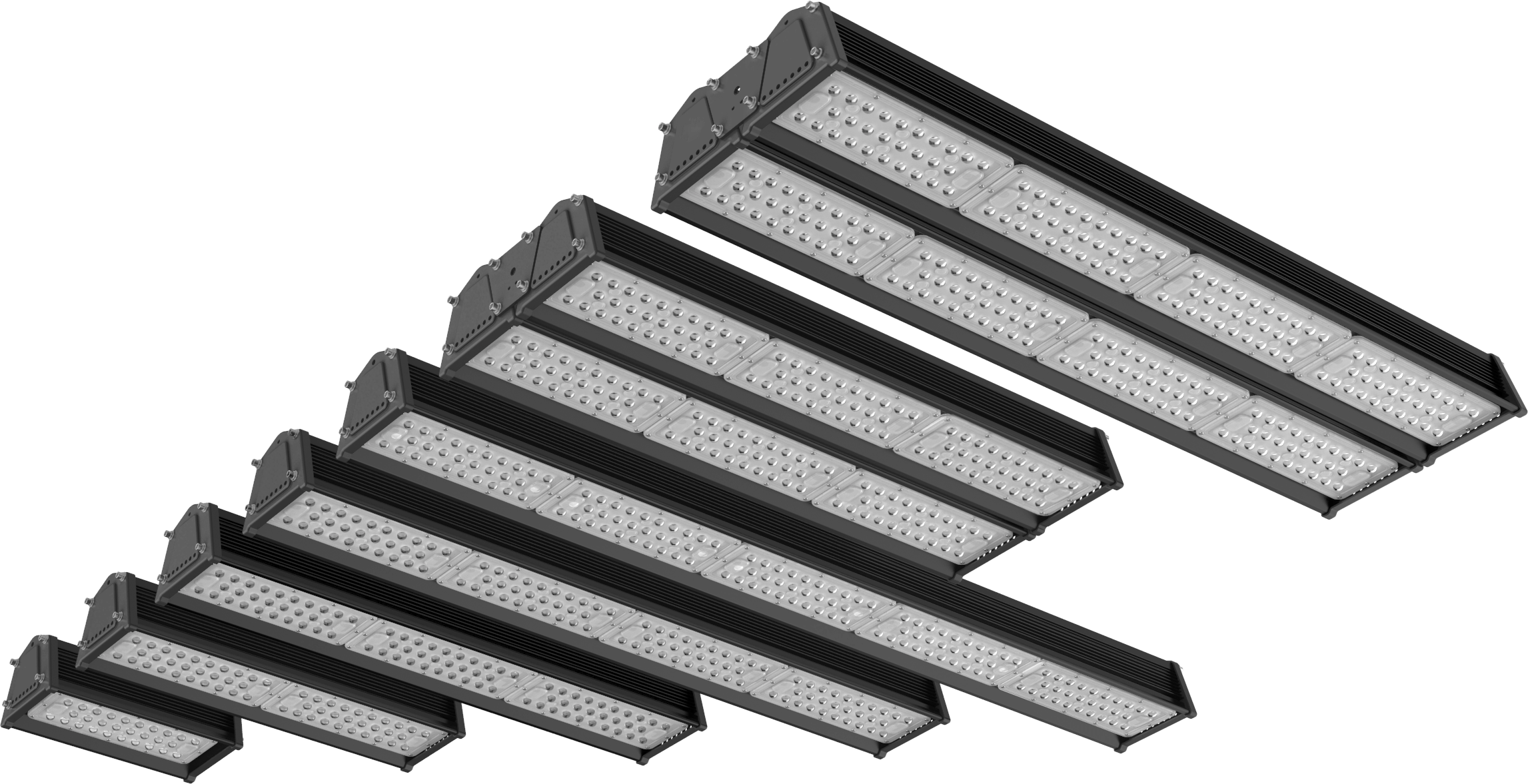

Within the Tauro Black range we have two models; the Tauro Black high bay, which comes in a wide range of sizes and operates well in temperatures up to +50°C and the ultra durable, high temperature rated NEW Tauro Black HT.

Which high bay do you need?



  TAURO BLACK

  TAURO BLACK HT

  Durability

  Durable

  Ultra Durable

  Power

  30W-240W

  90W-240W

  Temperature range

  -30°C to +50°C

  -30°C to +60°C

  Warranty

  5 YR  Warranty

  10 YR Warranty

  Driver

  Sosen

  Inventronics

  Lumen output

  4500 - 38,550

  14,100 - 38,550

  Luminaire efficacy: 151-165 lm/W

             ✔

              ✔

  Impact rating: IK10

             ✔

              ✔



    SEE BELOW

    FIND OUT MORE >

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
suspension mount 1 IP65 Rating 1 IK10 Rating 1 5 Year Warranty 1 Core Range (1)

Optional Features

Daylight Sensor Microwave Sensor Surface Mount Dali
Highlights

Key Features

  • Up to 40% more efficient when compared to standard LED highbays
  • Industry leading efficacy of up to 165 lm/w using Nichia LEDs.
  • Variety of optics available, symmetric and asymmetric
  • Wide range of sizes 30W-240W for low to high ceilings.
  • Optional smart controls with microwave motion sensor and daylight harvesting sensor
  • DALI & 1-10V dimming optional
  • Durable and robust with IP65 & IK10
  • 5 year product warranty
  • Hanging kits are included for easy mounting.
  • VEU approved
  • IPART approved

Applications

Large retail Loading docs Manufacturing Warehousing
Technical Info
OPTICAL
Light Source Nichia LEDs
Lumen output 4500 – 38,550 lumens
CRI Ra>70 standard; Ra>80 optional
CCT 5000K standard, 4000K optional
Luminaire efficacy 151-165 lm/W
Beam angle Symmetrical & asymmetrical racking



ELECTRICAL
Power Consumption 30 - 240W
Operating frequency 50 Hz
Operating voltage range 220 - 240V AC
Power Factor >0.9/240V AC
Driver Sosen
ENVIRONMENTAL
IP rating IP65
Impact rating IK10
Net Weight 1.9, 3.4, 4.7, 5.7, 6.9, 8.5, 10.3 kg (+/- 0.3kg)
Ambient temperature rating -30°C to +50°C
Material Composition (body) Aluminum Alloy
Material Composition (lens) Polycarbonate
Expected Lifespan >130,000 hours at L70

SMART CONTROL SENSOR
The Tauro Black highbay has a smart control sensors for daylight harvesting and motion detection. The highbay sensor is an LED lighting control device that can detect motion and ambient light when mounted up to a maximum height of 12m. Gain up to 40% increase in energy savings using sensors.

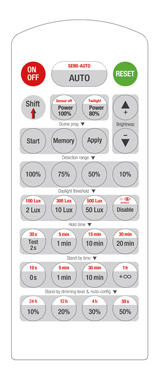

Remote

Design features:

  • Wide detection range of up to 16m diameter
  • 2 & 3 Step dimming offers full, standby & off modes
  • Daylight harvesting function can adjust light output depending on the amount of natural light available.
  • Maximum mounting height of 12m suitable for warehouse use
  • Setting are adjustable via a remote control commissioning tool.

Operating modes of the high bay sensor:

  • Motion detection and daylight harvesting
  • Motion detection only (no daylight harvesting)
  • Daylight harvesting only (no motion detection)

The smart control sensor can achieve up to 3-step dimming functions between high light output (100%), stand-by dimming (10-50%) and off. An integrated photo electric (PE) cell detects ambient light levels and will adjust the light output according to preset lux thresholds.

The intelligent lux level auto-commissioning function calibrates the target lux level automatically which simplifies the commissioning process.

Dimensions



MODEL LUMEN
OUTPUT (lm)
POWER
RATED (W)
SIZE LxWxH (mm) WEIGHT (kg)
TB 30 4,500 30 280 x 137 x 102 1.9

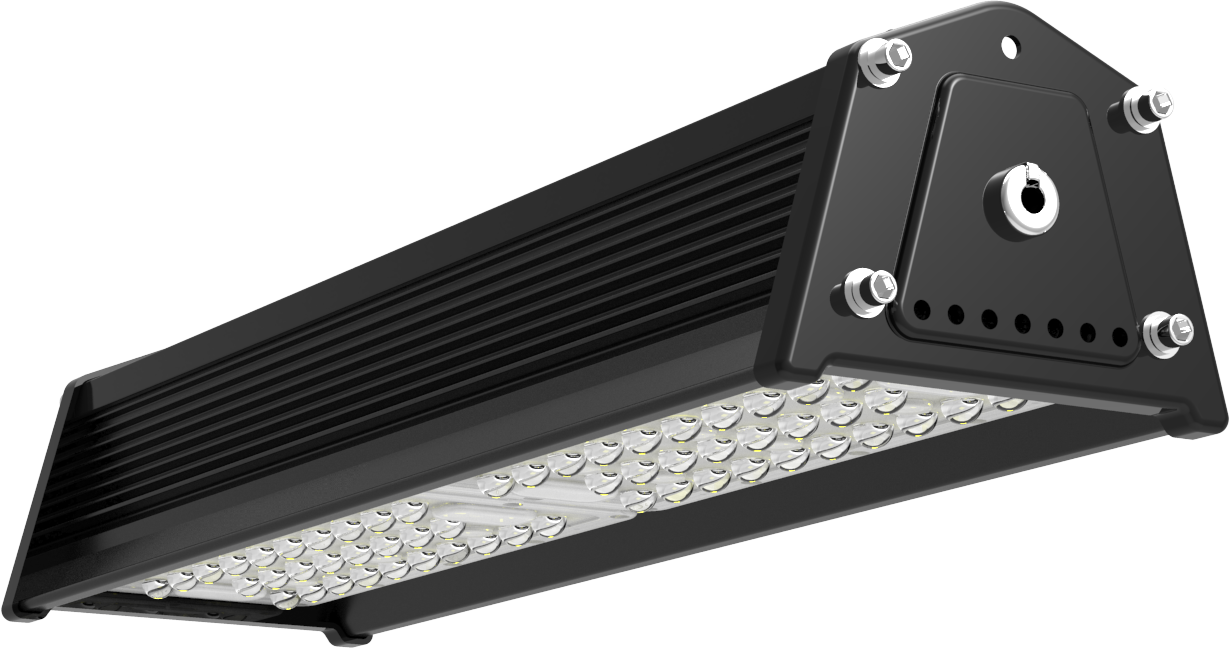

TB 60 9,300 60 486 x 137 x 102 3.4
TB 90 14,100 90 718 x 137 x 102 4.7

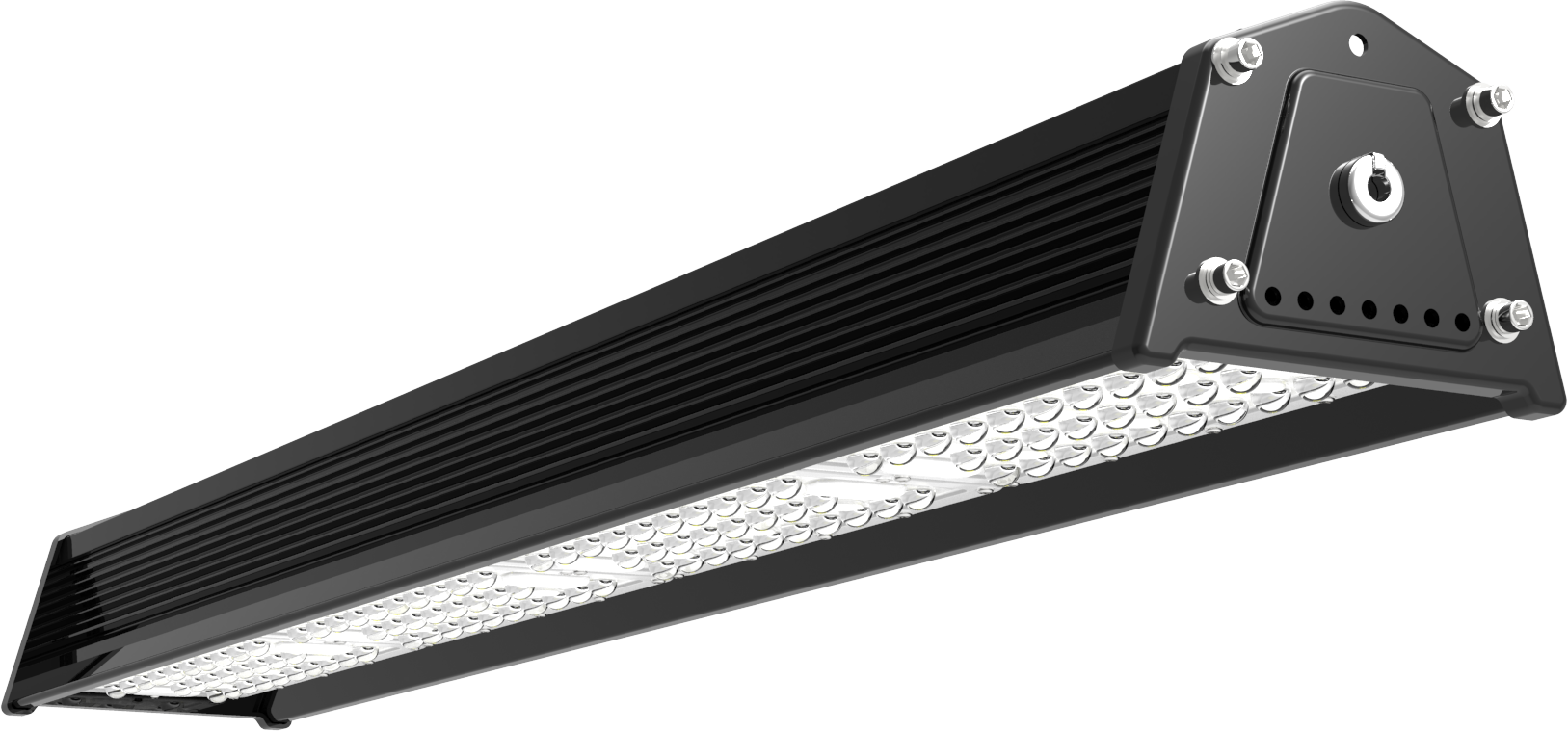

TB120 18,700 120 948 x 137 x 102 5.7
TB 150 23,000 150 1178 x 137 x 102 6.9
TB 180 27,700 180 718 x 275 x 102 8.5
TB 240 37,100 240 950 x 299 x 102 10.3




OPTIC CODE

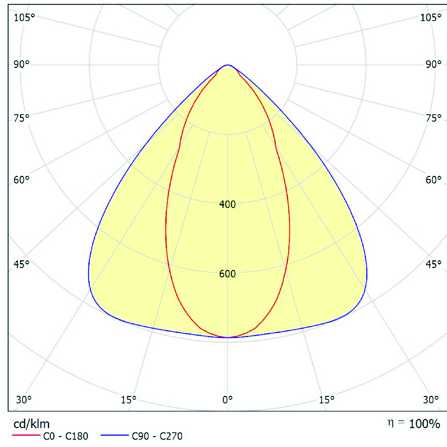

57 AR1, 57 AR2, 57 AR3, 57 S1, 57 S2

Product Review

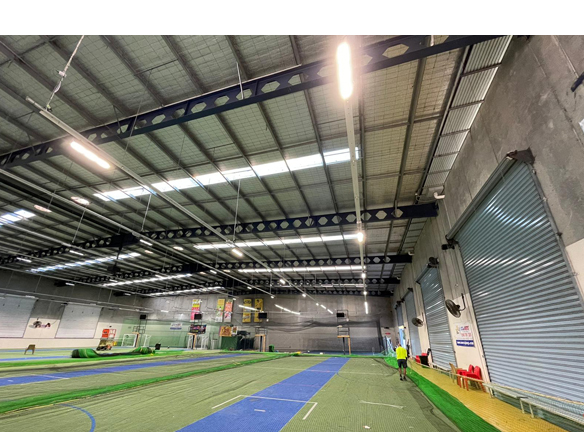

Danny Bouzas, Hills Indoor Sports + Batting

Batters up!

‘I am delighted at the results of the Tauro Black high bay retrofit. The staff and the customers have noticed a big difference in the lighting levels and are loving it. We went from 110 lux before the upgrade to 320 lux now.

With low glare lighting and better visibility, it is pushing the players to the next level and it is easier for umpires to do their job well.'

Ian Brunning, Globebusters

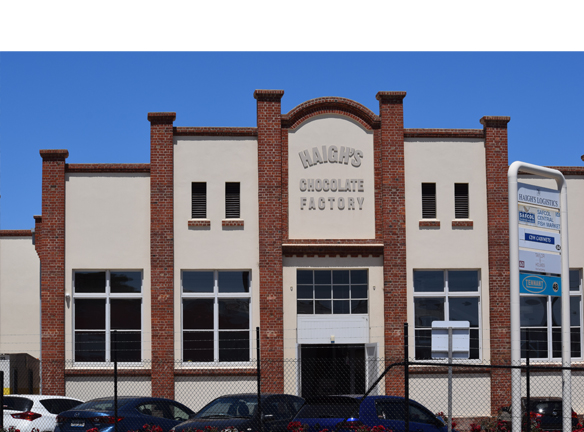

Haighs Chocolate Factory

High bay with industry leading efficacy of up to 165 lm/w

‘The Tauro Black lights were a pleasure to work with and so easy to install and they have an amazing light output. It was an excellent outcome for the customer.'

Peter Voigt, Voigties Volts
Polytrade Recycling

High efficacy LED warehouse

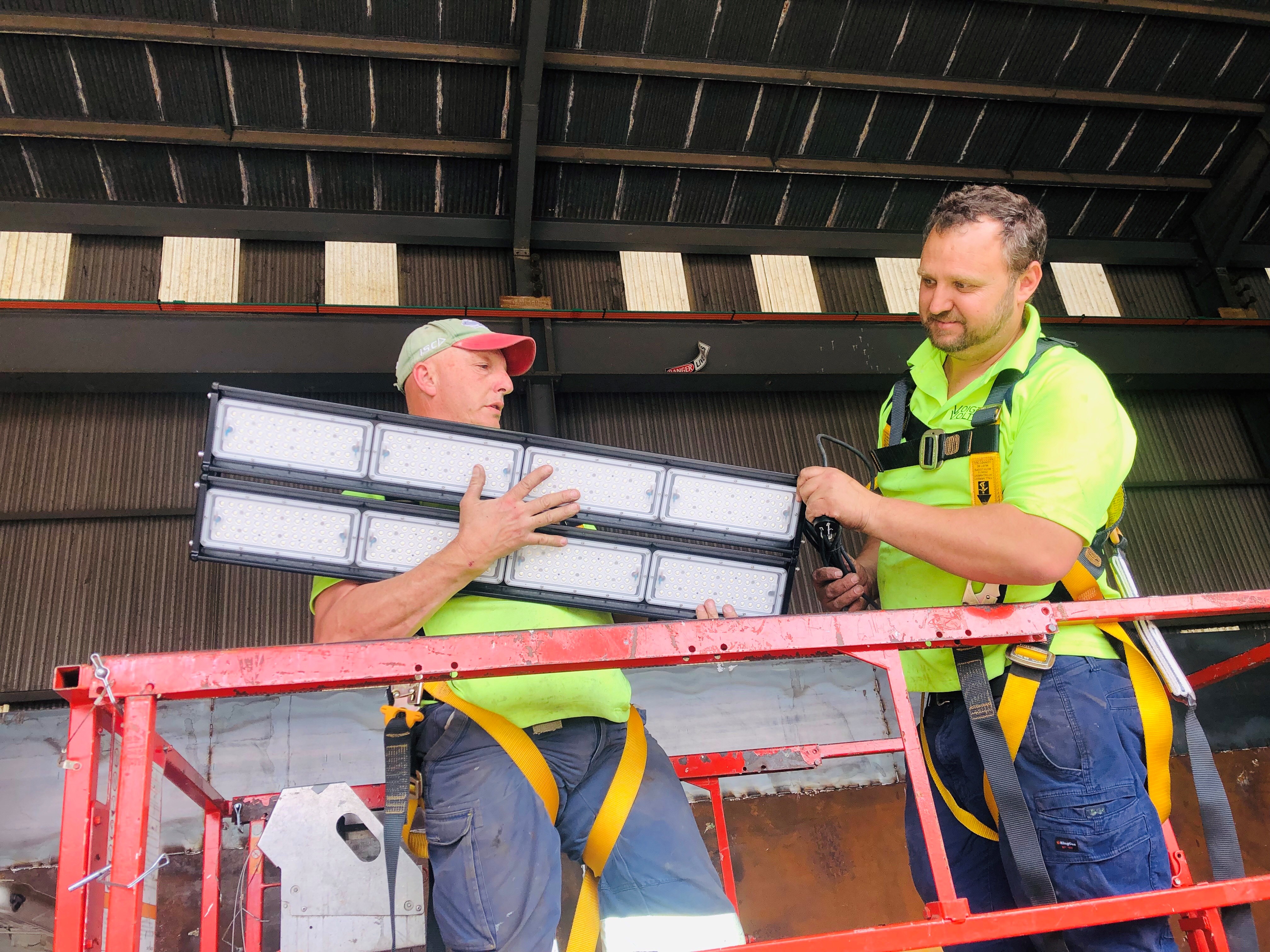

'The installation of the Tauro Black was so simple, it came with everything we needed. I used the single point mounting bracket and the stainless steel cables to hang the lights and it saved me hours of work.

The light quality from the Tauro Black was really impressive, there was a substantial difference seen around the machinery which was critical for the workers safety.'
