Zorro

ROBUST AND RELIABLE Street/area/food light

Overview

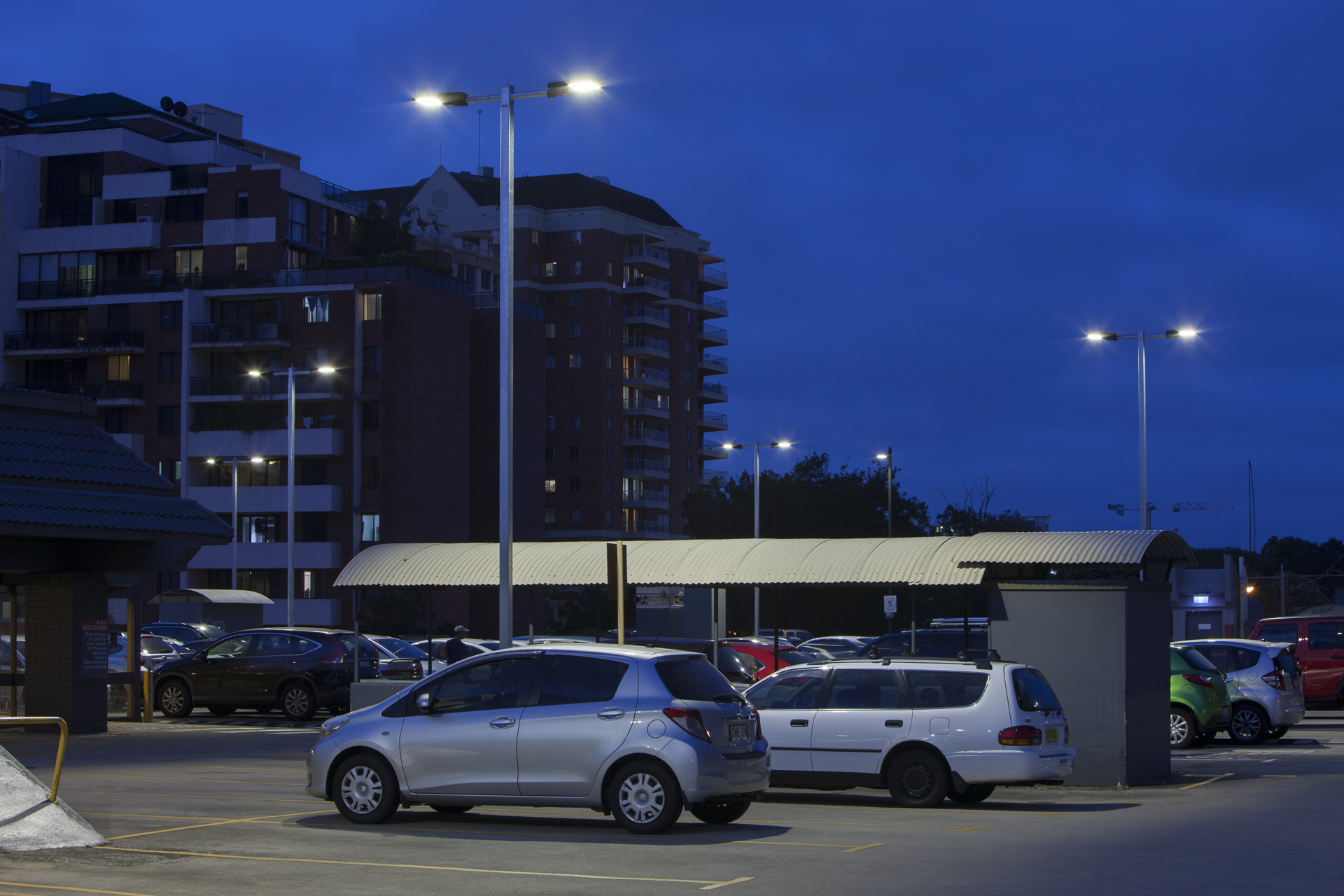

The Zorro area light offers superior performance and reliability. It is a high efficacy exterior car park and external walkway lighting solution. This light has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn. This versatile light comes in a wide range of power and lens options to suit your application.

Product Downloads

Click the below links to download guides, datasheets and more.

enLighten Zorro Datasheet (1316.3KB)
enLighten Zorro DC Datasheet (1204.4KB)
enLighten Zorro Installation Instructions (2531.8KB)

Secure Zone Documents

Optional Features

Highlights

Key Features

Sleek low profile design available in silver or black
Modular design offering a broad range of lumen outputs and light distribution
High performance Lumileds LUXEON TX LEDs

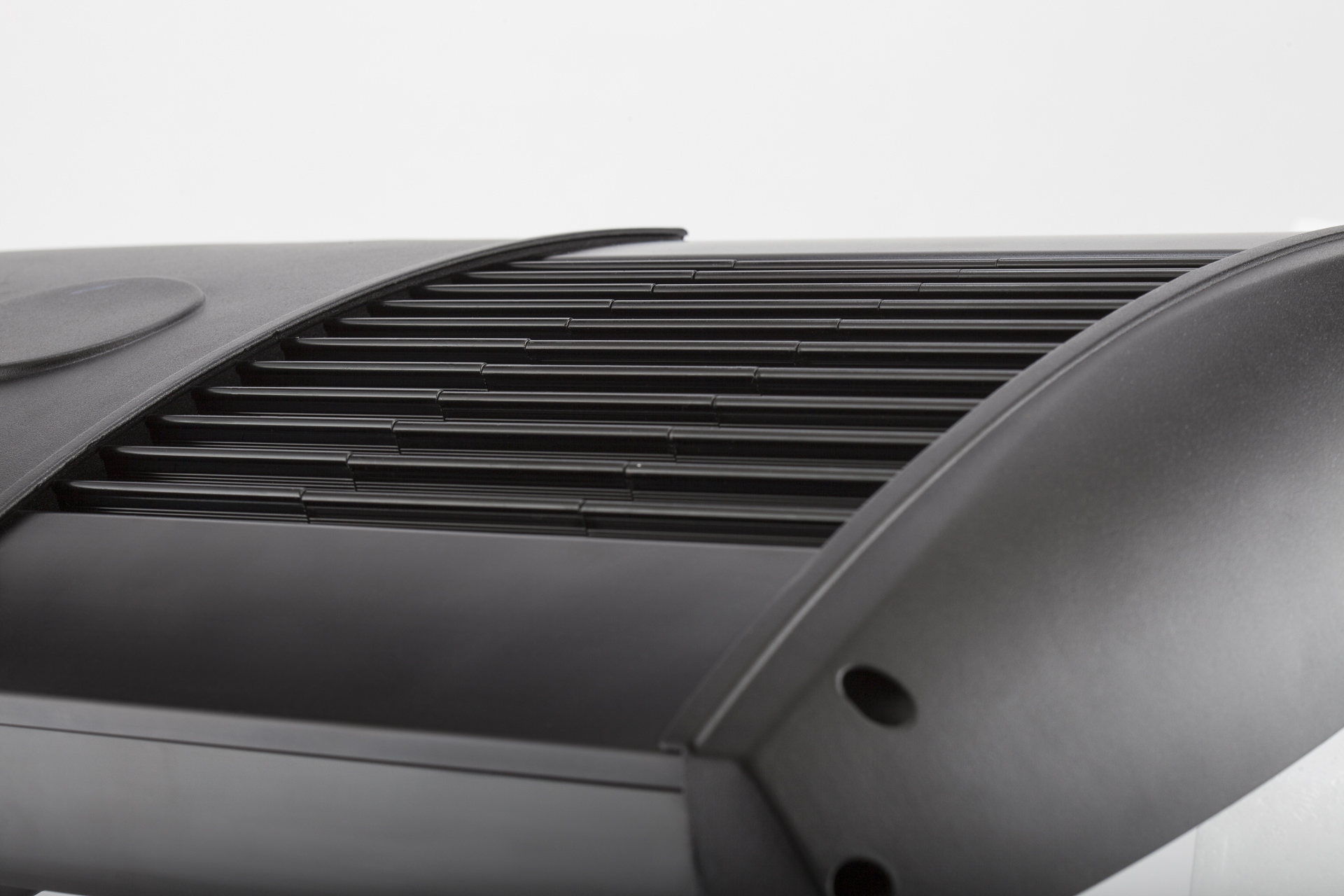

Breather gaps between modules increase heat transfer to maximise LED performance

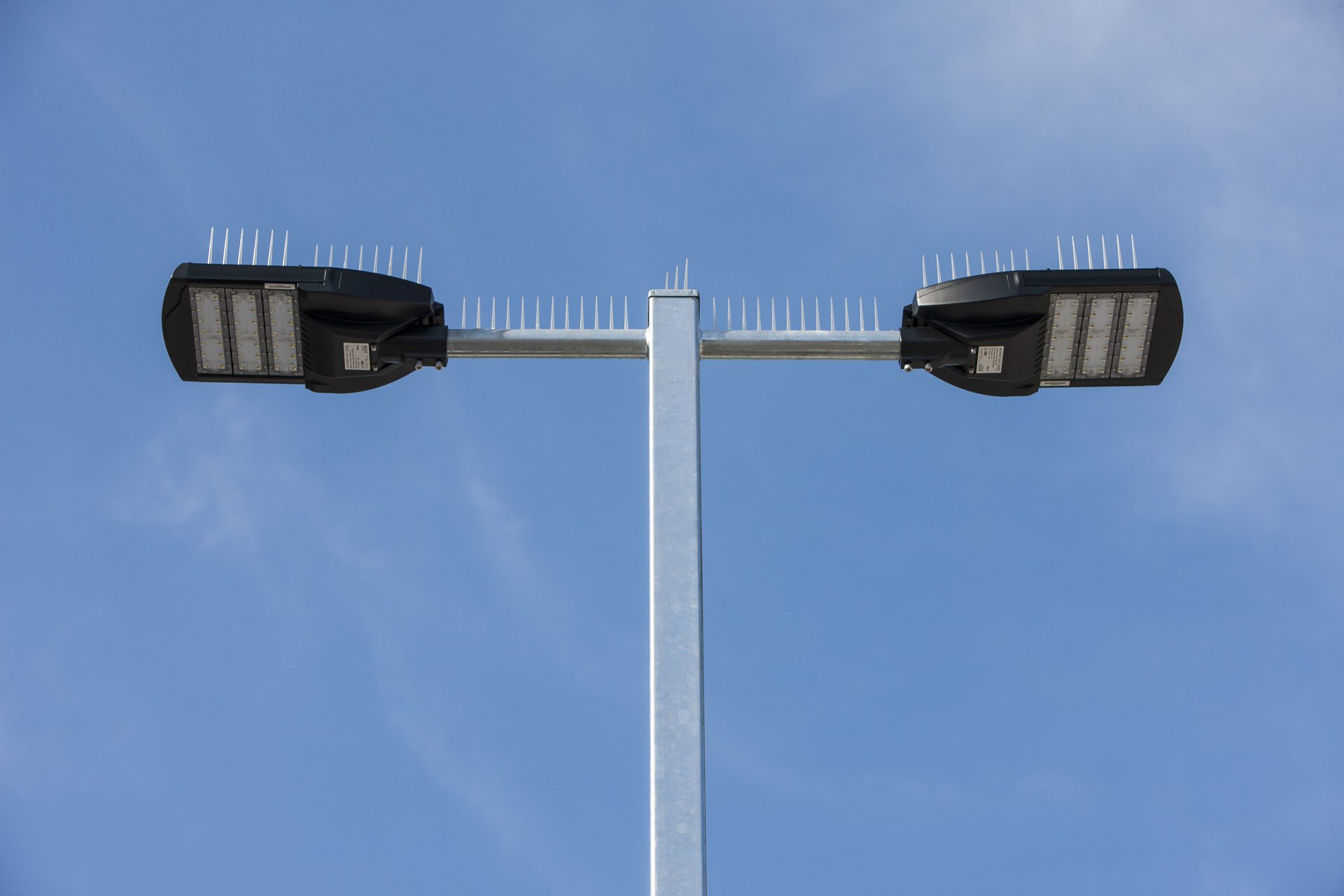

Easy fit universal mountings and connectors – ability to fit square and round poles

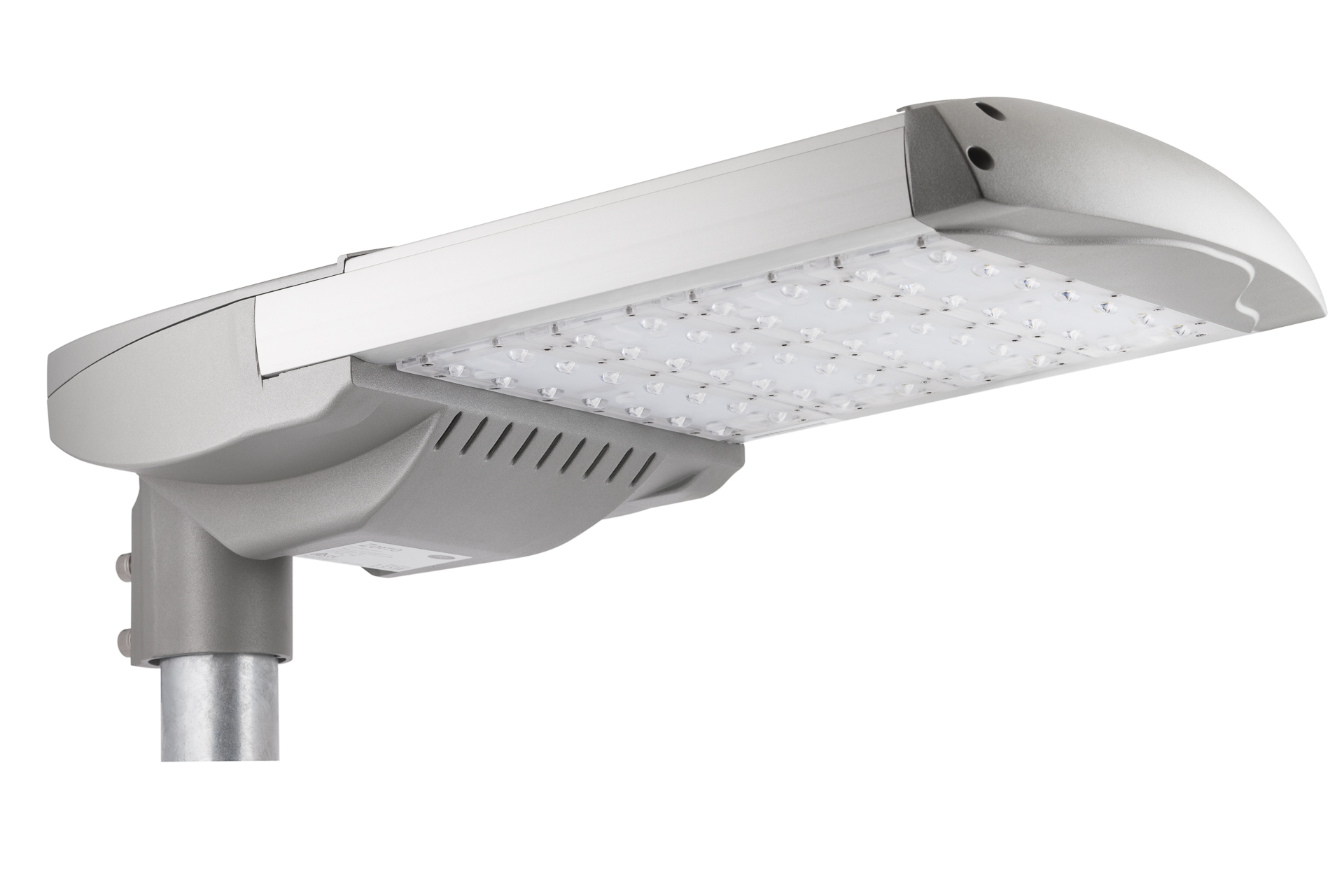

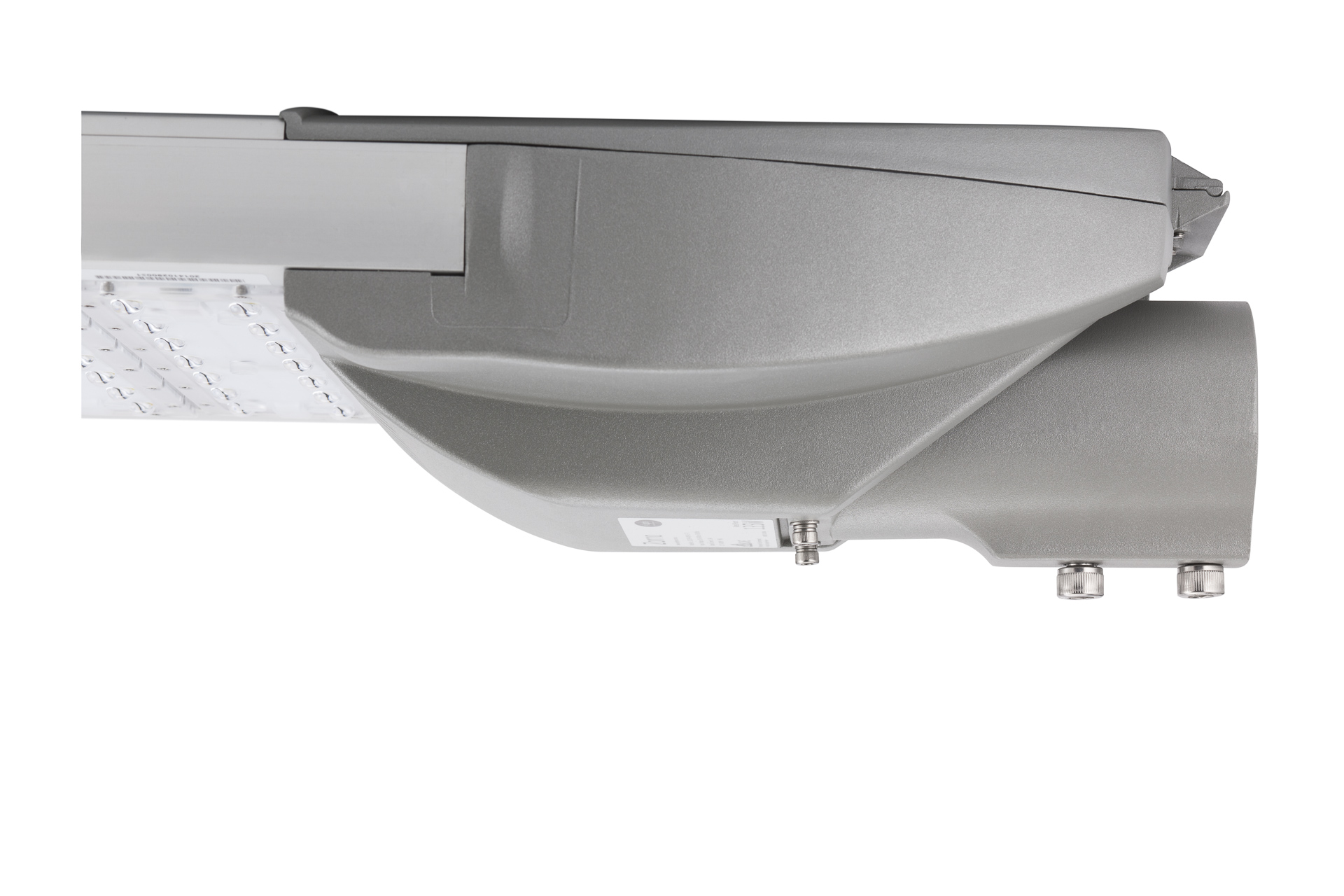

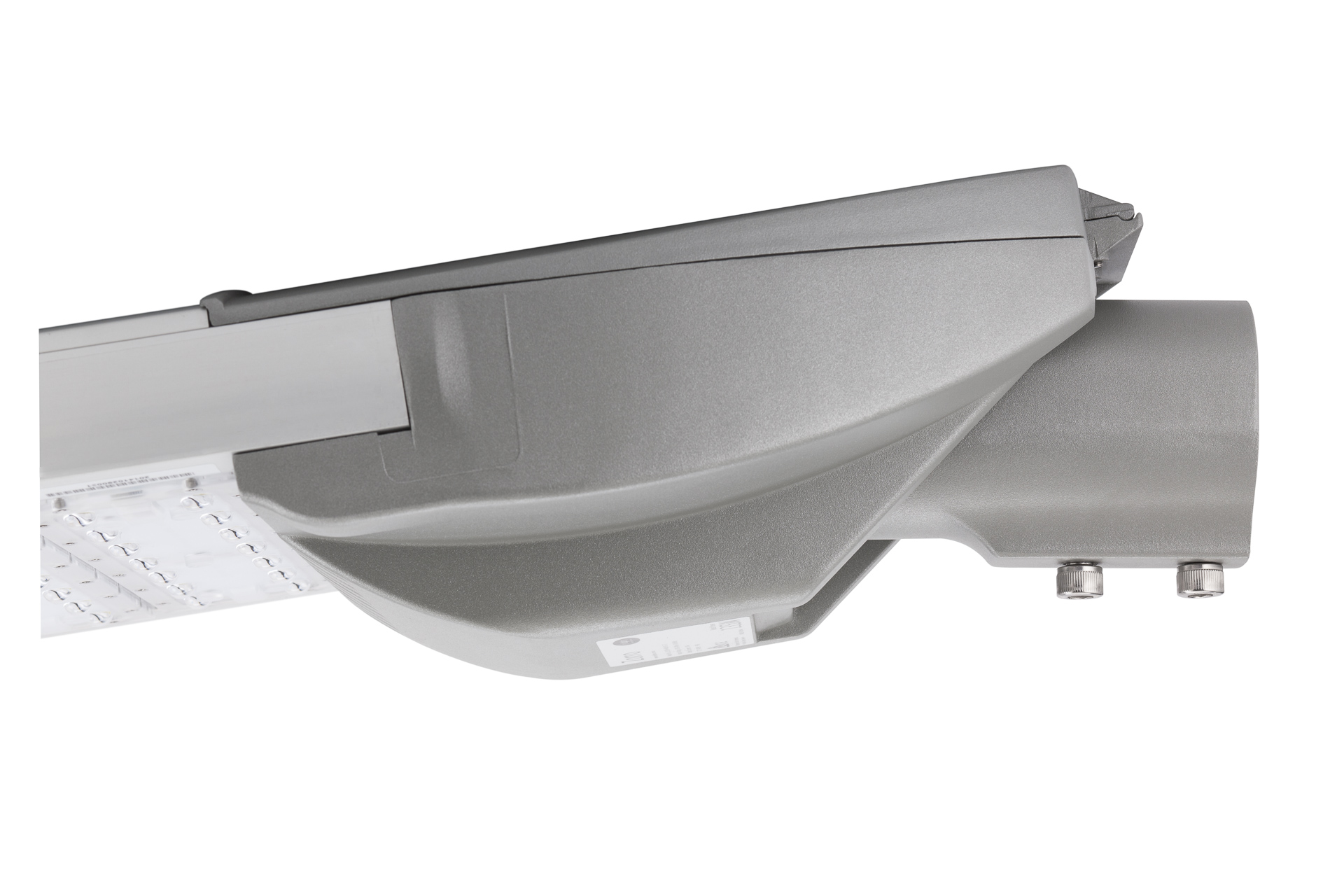

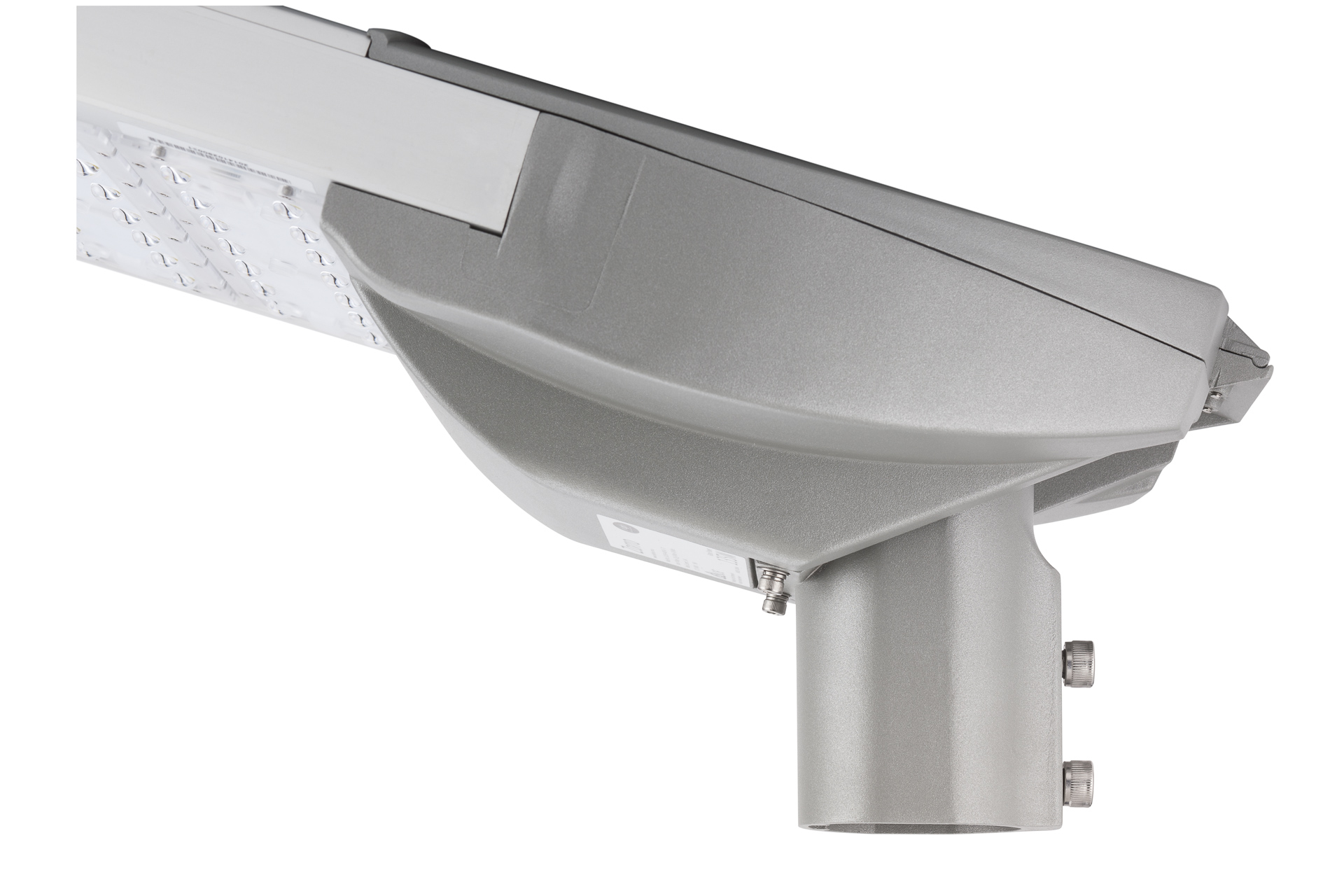

Adjustable spigot offers horizontal and vertical installation
Integrated PE option available to switch off during the daylight hours
Optional low voltage DC drivers for solar/battery powered interface
IPART approved

Applications

Technical Info

MODEL	DIMENSIONS (mm)	LUMEN OUTPUT (Lm)	Rated Power (W)
LD35H-4000-TX-YYY	431 x 316 x136	4600	35
LD65H-4000-TX-YYY	504 x 316 x 136	8600	65
LD100H-4000-TX-YYY	577 x 316 x 136	13,300	100
LD135H-4000-TX-YYY	650 x 316 x 136	17,900	135
LD165H-4000-TX-YYY	723 x 316 x 136	21,900	165
LD200H-4000-TX-YYY	796 x 316 x 136	26,600	200
LD230H-4000-TX-YYY	869 x 316 x136	30,500	230

OPTICAL
Light source	Lumileds LEDs
Lumen output	4,494 - 31,488 lm
CRI	Ra>70
CCT	4000K standard; 3000K, 5000K & 5700K optional
Luminaire efficacy	up to 130 lm/W
Lens Angle	TI, TII, TIII, TV

ELECTRICAL
Power consumption (W)	35, 65, 100, 135, 165, 200, 230
Operating frequency	50/60 Hz
Operating voltage range	100 - 240V AC
Power factor	>0.9/240V AC at full load
Maximum current	0.18A, 0.33A, 0.51A, 0.69A, 0.85A, 1.03A, 1.18A/240V
Driver type	MEANWELL
Driver efficiency	>90%

ENVIRONMENTAL
IP rating	IP66
Impact rating	IK10
Weight	5.3 - 10.8kg
Ambient temperature range	-40°C to +50°C
Material composition (body)	Die-cast aluminium
Material composition (heat sink)	Anodized aluminium
Expected lifespan	>140,000 hours @ L70

CONTROLS - OPTIONAL

Photo electric (PE) cell
24V DC driver

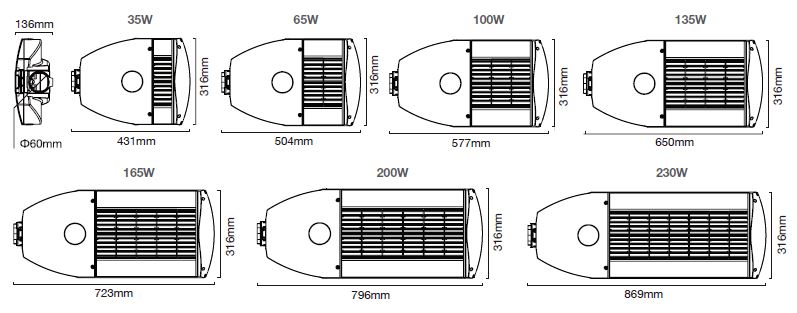

Dimensions

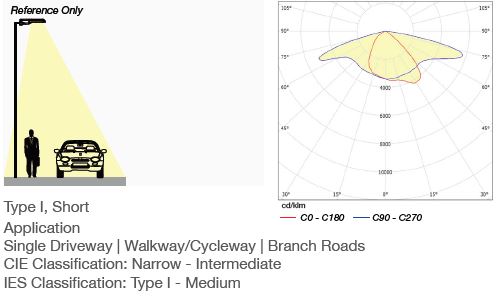

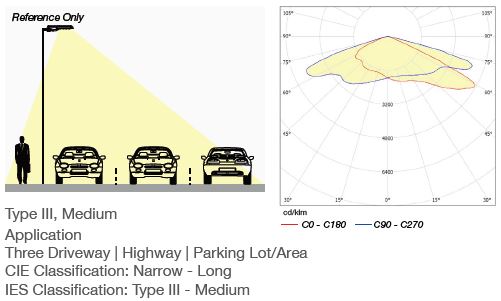

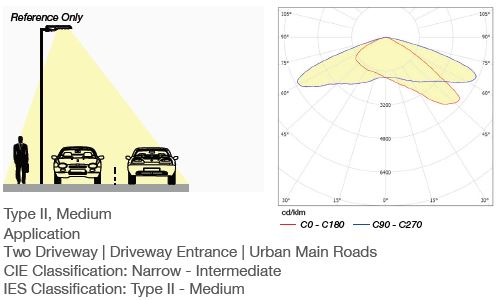

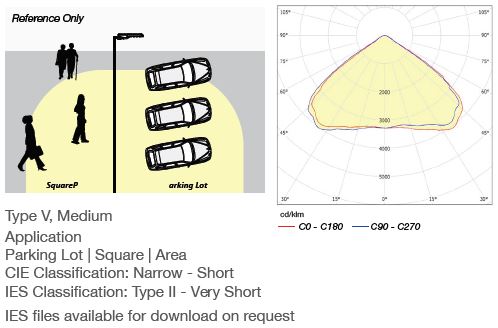

Photometrics

Product Review

Andrew Caswell, Nutbrook Engineering Group

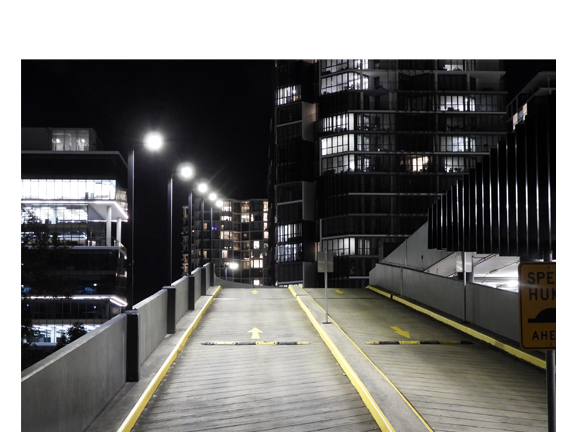

Macquarie Centre car park
Installed on this site were:
Zorro area light and the Noctua non-glare floodlights and Vico battens

‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.

I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’

Asher Christophers, Director at Austep Lighting

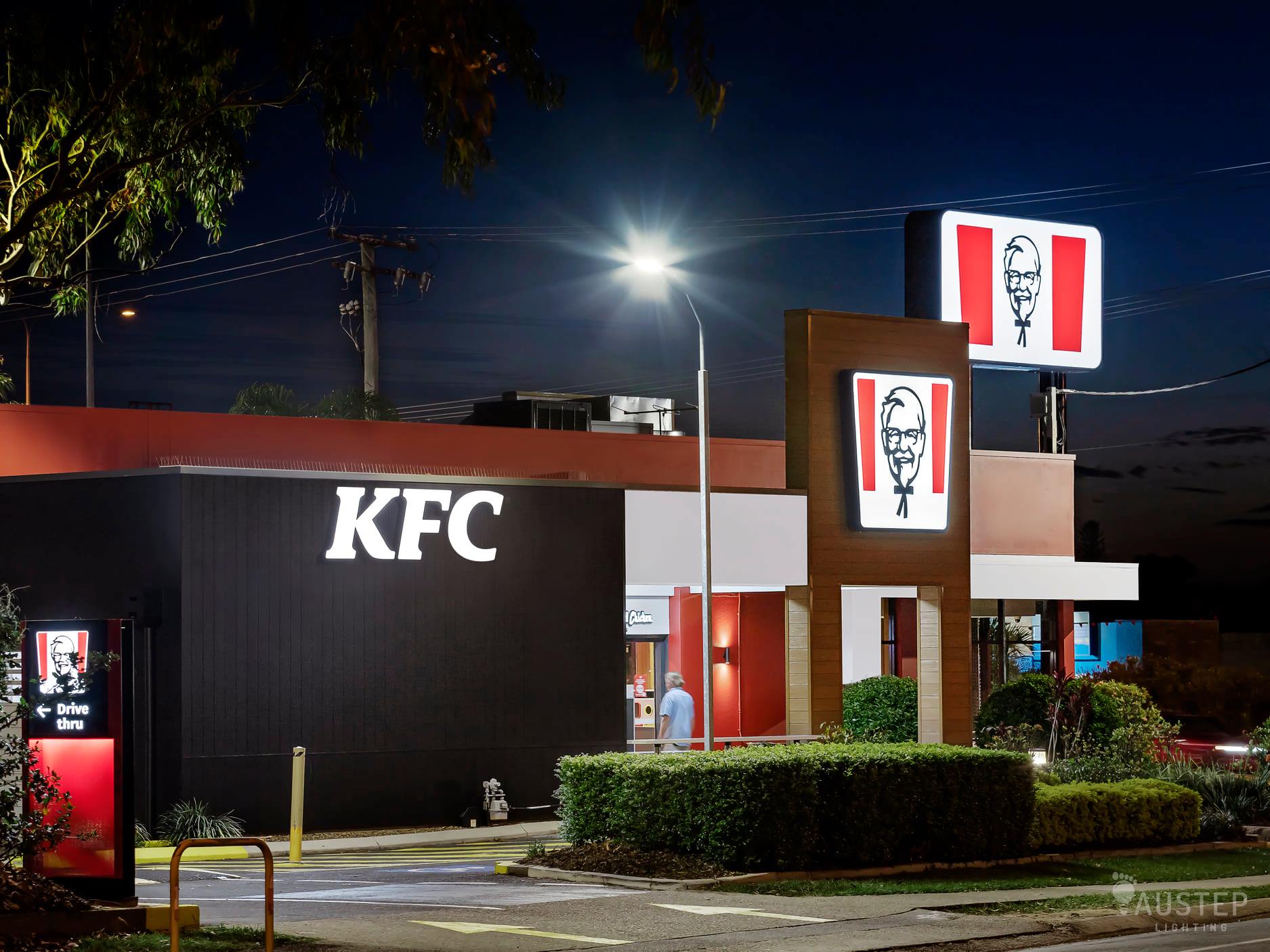

Outdoor lighting upgrade for KFC stores in NSW
‘I wouldn’t choose anything but the Zorro, the longevity and efficiency of the fittings have really helped to deliver on energy savings and sustainability initiatives for our client.

The low-glare optics mean the KFC stores are looking great and we are very pleased with the result.’

Matthew Young, General Manager Tourism, Ingenia Communities

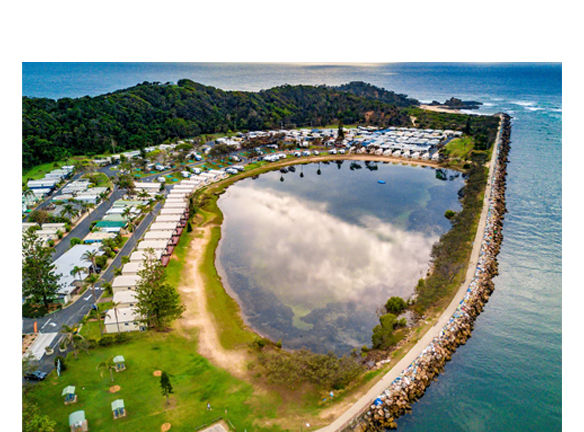

Ingenia White Albatros, Nambucca Heads
32 x Zorro: Area light
75 Vico: BBQ/recreation and amenity light

Ingenia South West Rocks
17 x Zorro: Area lights
60 x Vico: BBQ/recreation and amenity light
2 x Noctua: Floodlights

‘The recent LED lighting upgrades undertaken across Ingenia Holidays parks in QLD and NSW will not only help the Group reduce carbon emissions but also make the parks safer and more inviting for our guests.’
