Fire stair LED lighting upgrade

Project Payback

ROI: 2.4 years

Adelaide Consultants Sustainable Focus advised SA Pathology on energy efficient lighting upgrade options for the existing single and twin T8 fluorescent tube lighting in the fire stairs and plant rooms of their Adelaide clinical laboratory & research facilities. The Chamaeleon III light was selected over LED battens with microwave sensor due to its energy savings and the additional features of self test.

Savings

Energy: 90%

Total: $148,215

Energy & maintenance over 10 years

Savings per fitting: $188 pa

Avg annual energy & maintenance saving over 10 years

Project Overview

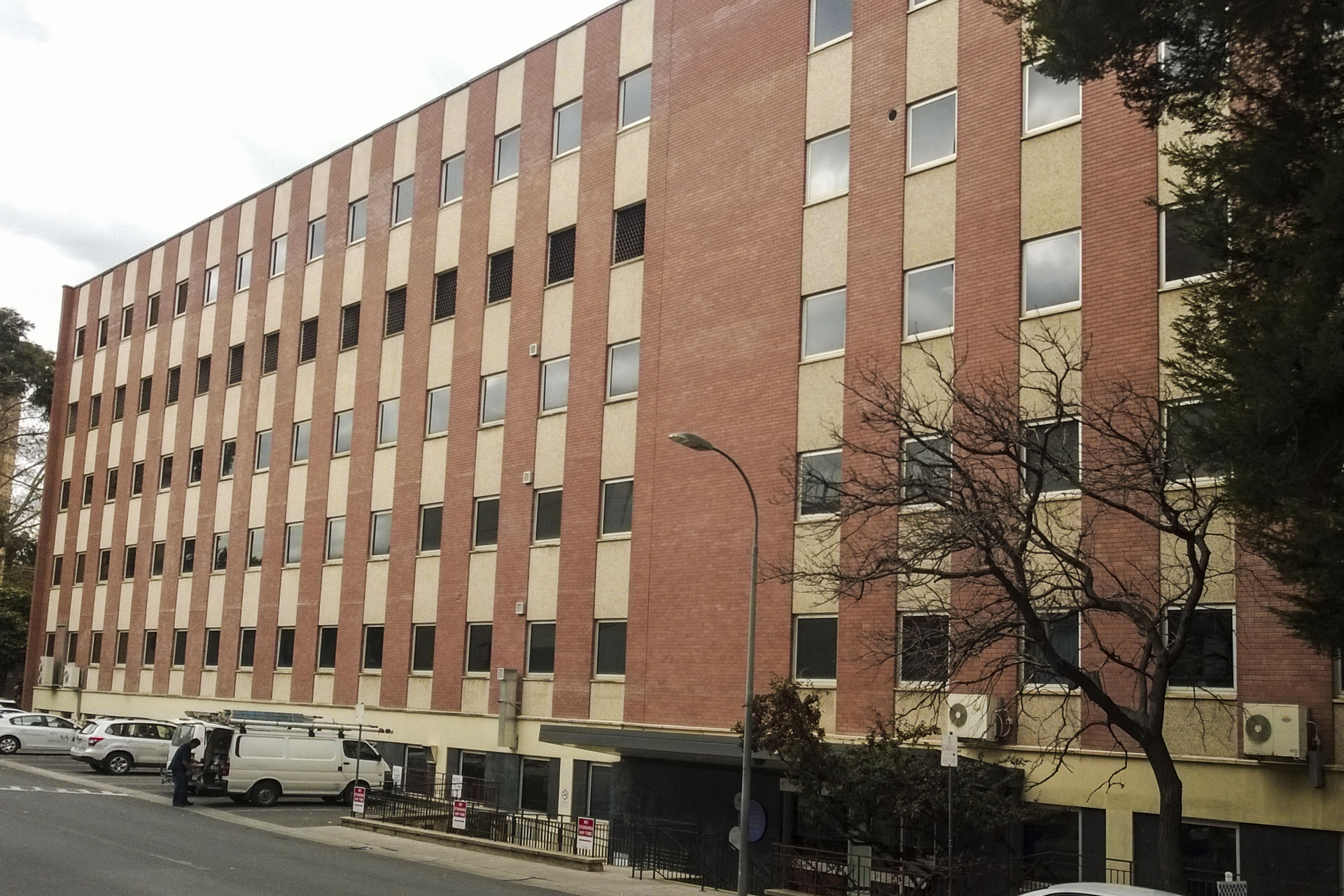

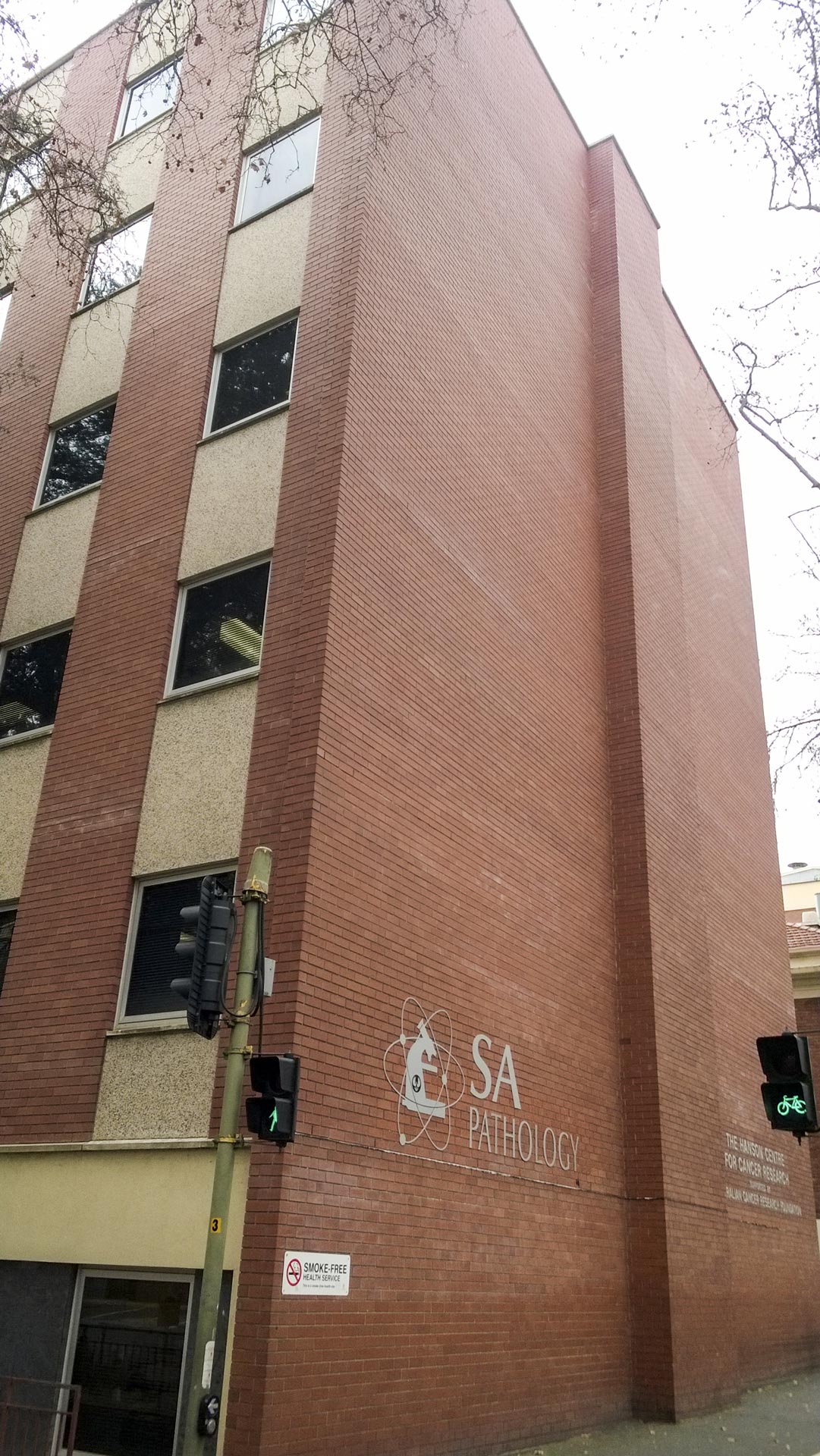

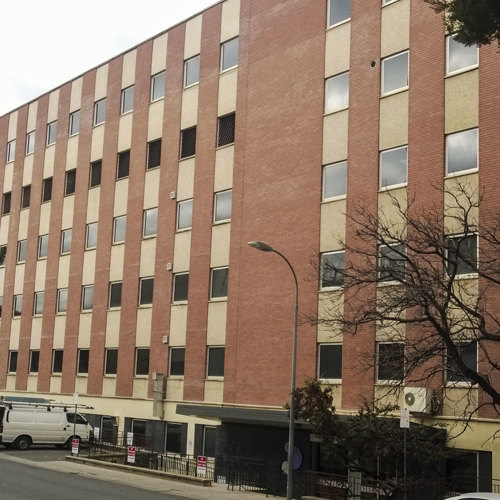

Adelaide's Hansen Institute for Cancer Research, owned and managed by SA Pathology and housing clinical laboratory and research facilities, is among the first customers of enLighten's new Chamaeleon III light.

Adelaide consultants Sustainable Focus, who have extensive knowledge of Energy System Optimisation, advised SA Pathology on energy efficient lighting upgrade options. Lighting and Energy Consultant, Matthew Martin assessed a number of LED technologies for the fire stair and plant room upgrade of existing standard and emergency fluorescent batten technology.

Existing lighting in the stairwells were separate general and emergency luminaires installed next to each other on each landing level. The stairwells were used regularly between 9-5.

Testimonial

After assessing a number of LED technologies for the fire stair upgrade, we selected the Chamaeleon III over an LED batten with microwave sensor because of the additional features of self test, which enables each emergency light to run a monthly battery discharge test without interrupting the light's normal operation. Another feature was the new dimming transition between lighting levels & the ease of installer programming with the LED confirmation.

Matthew Martin Lighting & Energy Consultant

Gallery

The Solution

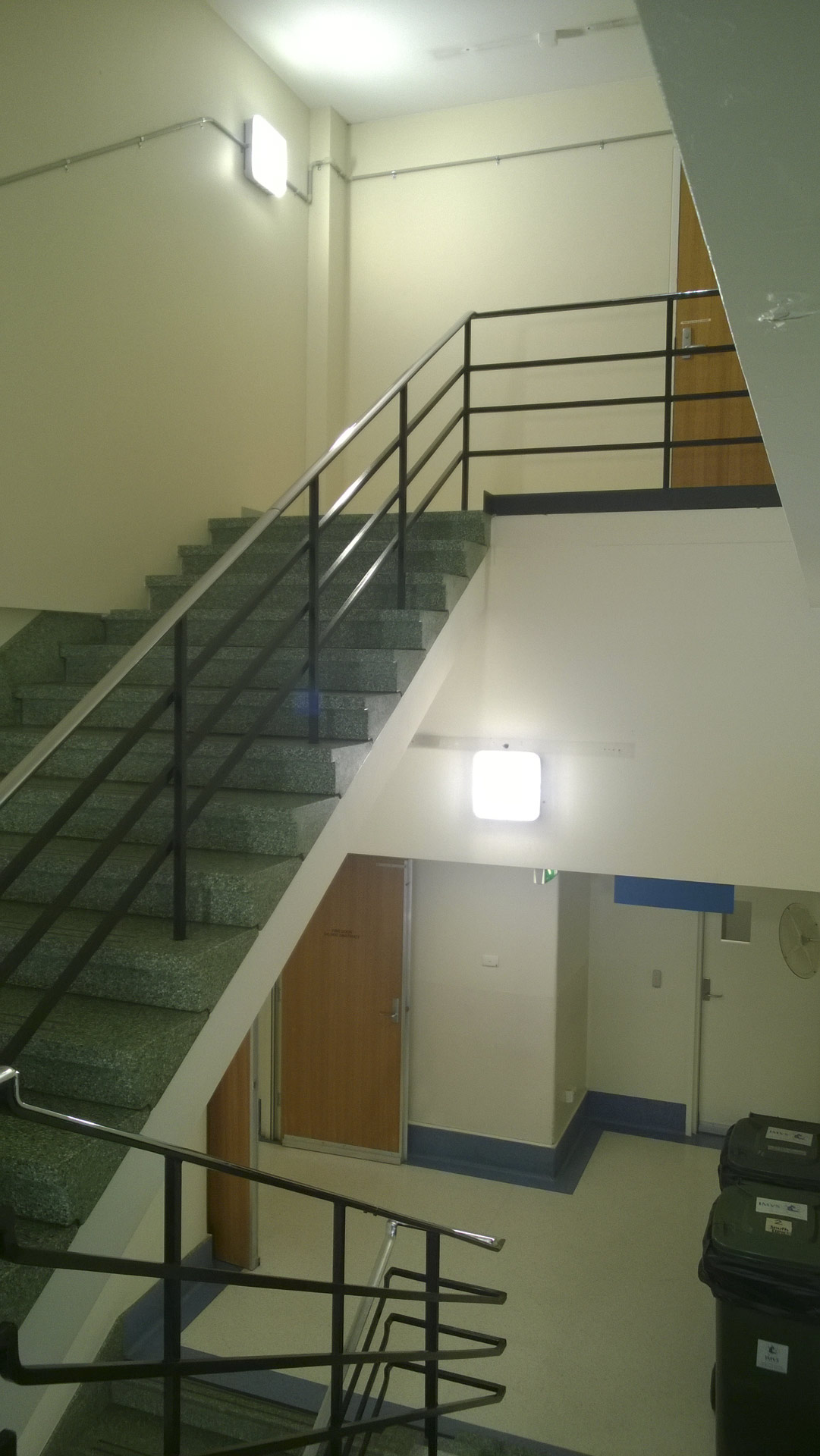

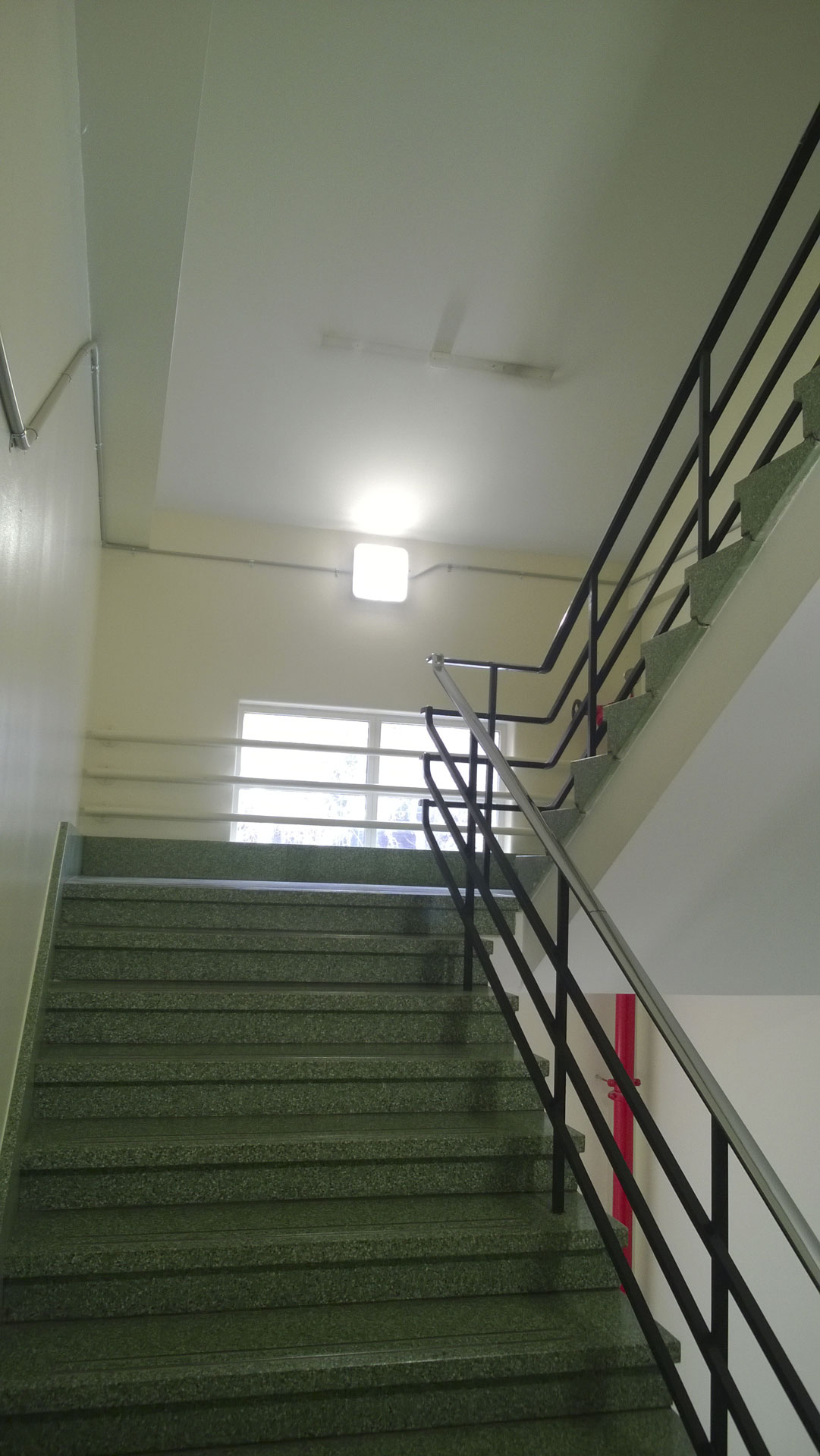

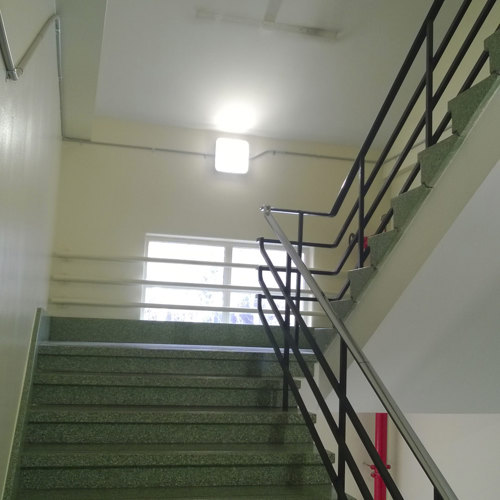

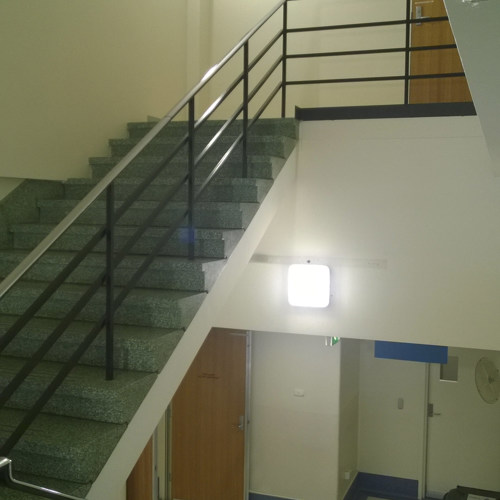

66 standard & emergency Chamaeleon IIIs were installed, replacing 103 fluorescent fittings (including 27 non maintained 10W T8 battens) & meeting the 80 lux requirements for AS 1680 compliance.

The Chamaeleon III's additional self test features enables each emergency light to run a monthly battery discharge test without interrupting the normal operation of the light. The test status is visible via a multicolour indicator & allows the building manager easier scheduling of battery changeover within the 6 monthly reporting requirements.

The project offered an attractive payback as there was a 1 for 2 replacement of light fittings in the fire stairs which halved the number of luminaires, resulting in ongoing energy and maintenance savings.

Download PDF

More Project Details (click to reveal/hide)

The project drivers were to reduce energy and maintenance costs and to reduce the site’s energy consumption for SA Health's internal efficiency reporting requirements.

Chamaeleon III Settings

The standard settings of 100% full light output and 2.5% light output in standaby (consuming 4-5W) were applied. The timer control on the microwave motion sensor was increased from the standard 15 seconds to 90 seconds to allow for the movement of groups of people transitting through the fire stair during office house of 9am & 5pm.

For more information on Sustainable Focus’s project portfolio and previous experience see their website at www.sustainablefocus.com.au for case studies and more information.
